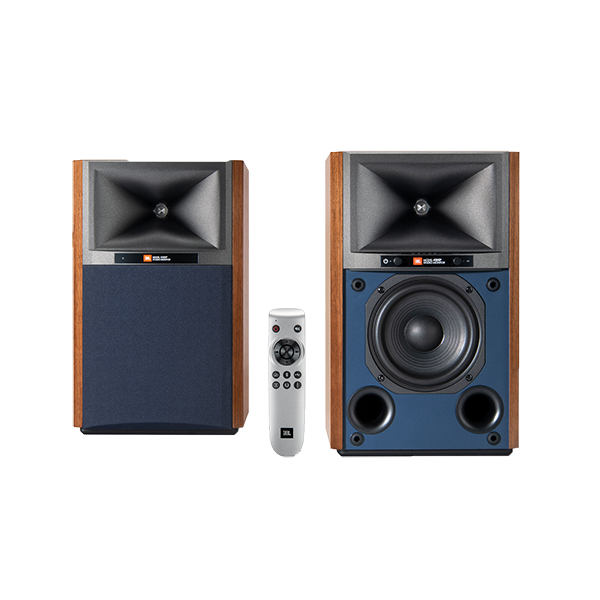

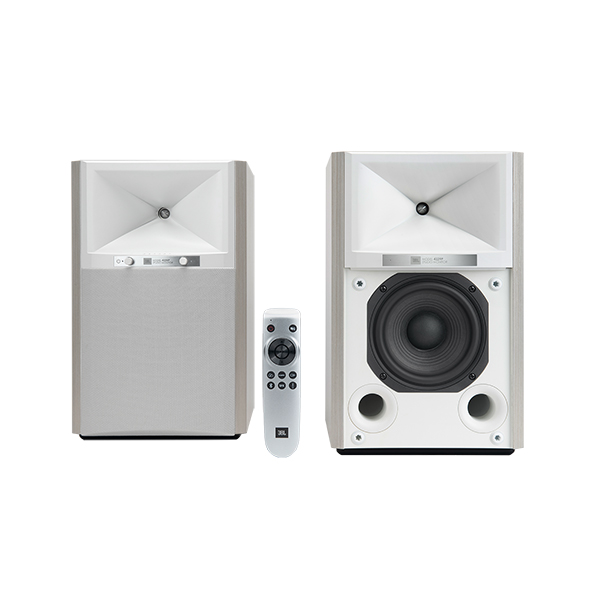

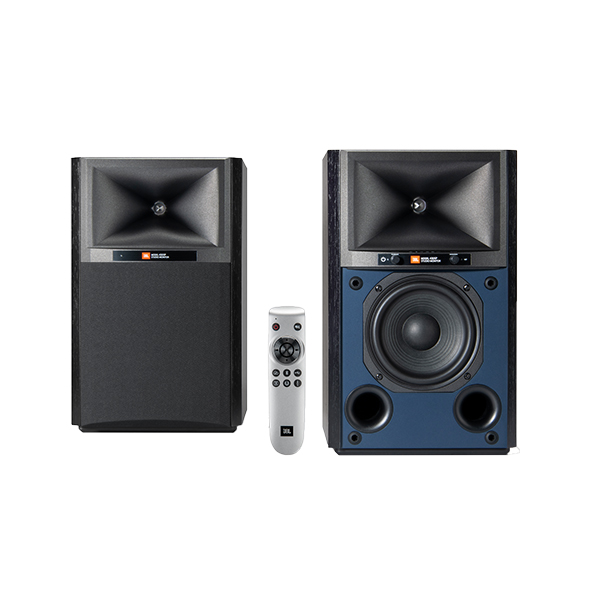

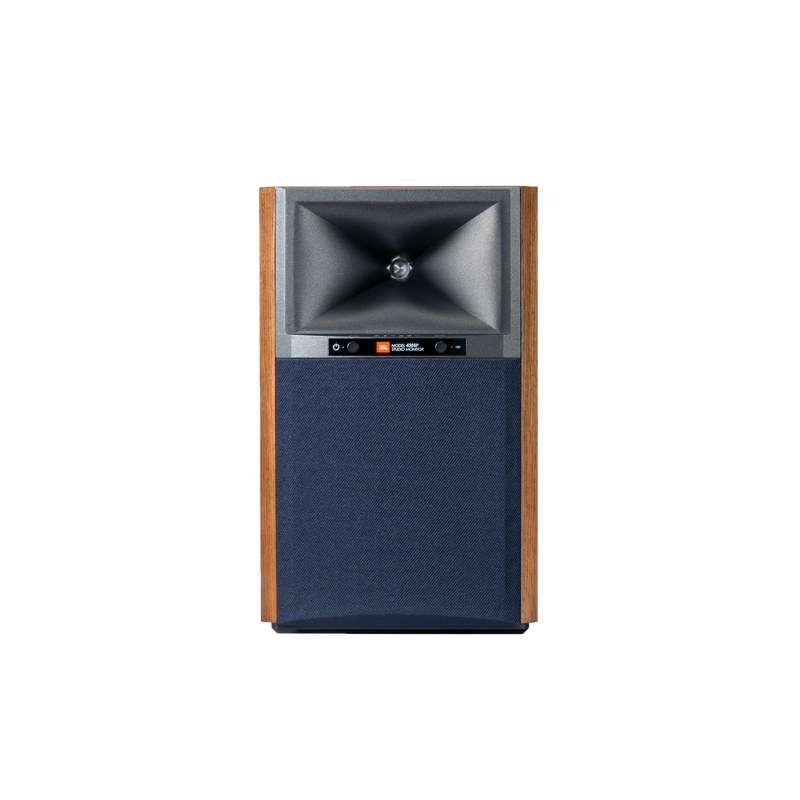

Powered Bookshelf Loudspeaker System

The JBL 4305P Studio Monitor is a completely self-contained powered loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity open a world of possibilities for the music lover and content creator. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth audio. A 24-bit/192kHz high-resolution DAC ensures your favorite music comes across with the highest fidelity. In addition to premium wireless audio, the 4305P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono input for use with balanced or unbalanced signals.

Features

• Wireless Streaming Audio via Chromecast, AirPlay 2, Roon Ready and Bluetooth
• Extensive Digital and Analog Connectivity
• 24-Bit/192kHz High-resolution DAC

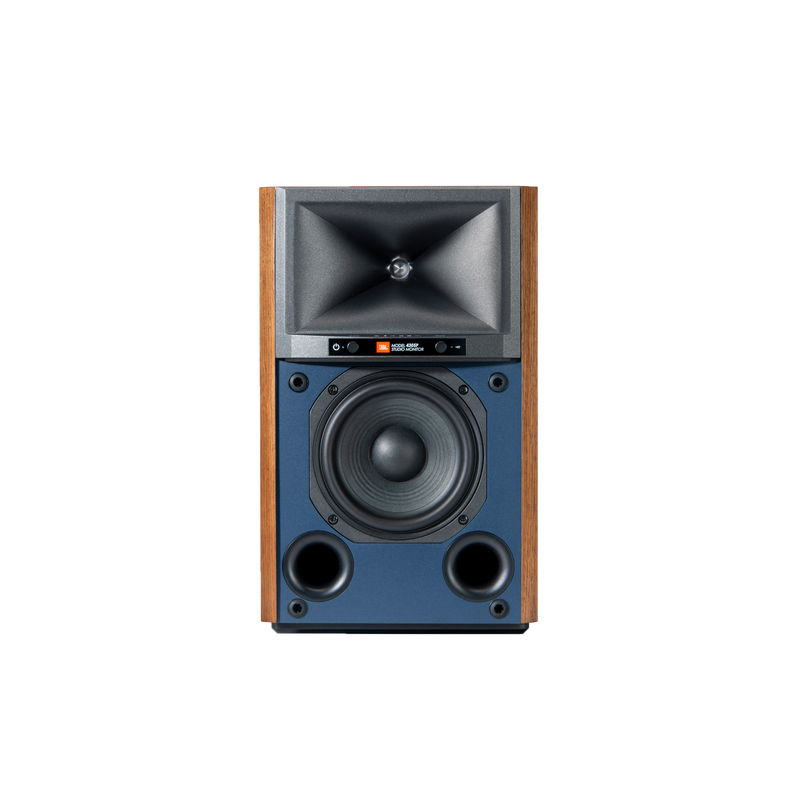

• Patented JBL Driver Technologies: 2410H-2 / 1-inch (25mm) Compression Driver with High-Definition Imaging™ Horn
• JW130P-4 / 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames
• 300W Total RMS System Power
• Bluetooth Wireless Remote Control
• Premium Wood Veneer Cabinet Finish

General Specifications

• Type: Compact, Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity
• Low Frequency Drivers: JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames
• High Frequency Drivers: 2410H-2, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns
• Amplifier Power: 300W Class D System Power, 150W RMS per Speaker (25W per HF Compression Driver + 125W per LF Woofer)
• Audio Resolution: Up to 24-bit, 192 kHz (Digital Link connection between spks), Up to 24-bit, 96 kHz (Wireless connection between spks)
• Frequency Response: 45 Hz – 25 kHz (-6 dB)
• Crossover Frequency: 1,750 Hz
• Dispersion: 90° Horizontal x 60° Vertical (2kHz to 20kHz)
• Sound Controls: Front Panel- Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB)
• Wireless Inputs: WiFi streaming, Bluetooth 5.1

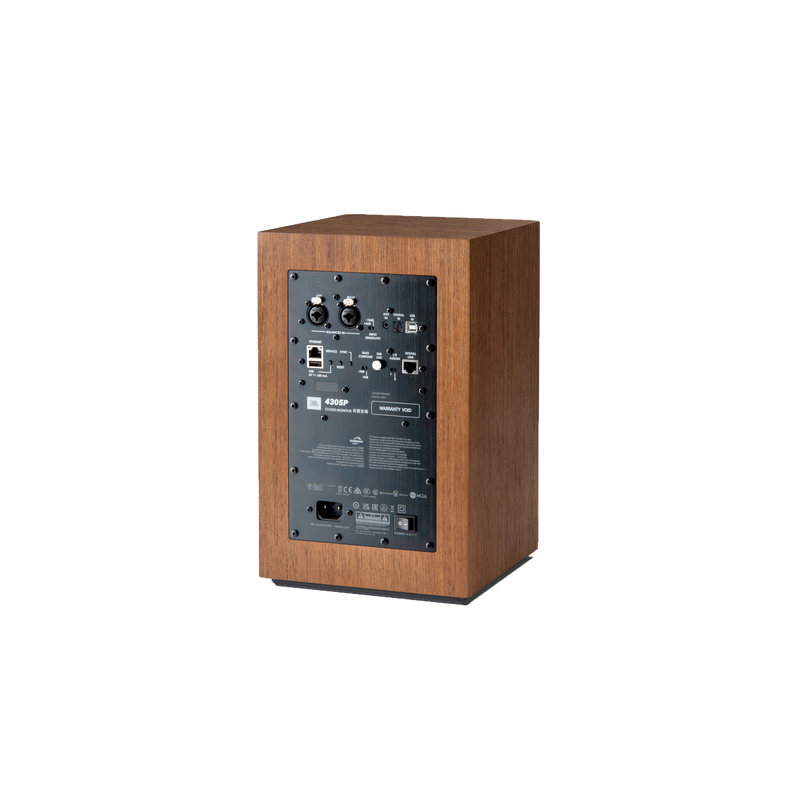

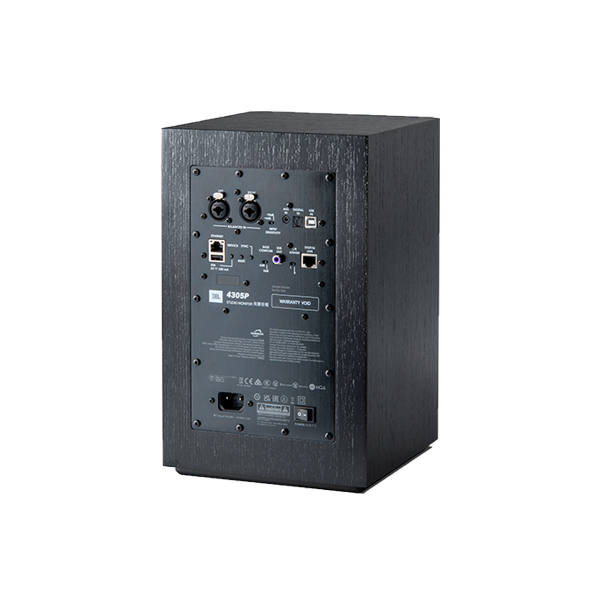

• Wired Inputs: Analog – XLR/¼” Combo and 3.5mm stereo, Digital – Asynchronous USB-B and Toslink/Optical
• Wired Inputs, Digital: Asynchronous USB-B and Toslink/Optical
• Supported Digital Audio Sample Rates (PCM 2CH): Streaming & Local Media – 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz SPDIF – Up to 192kHz Bluetooth – Up to 48kHz
• Music Formats Supported (Local Media): AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA
• Subwoofer Output: Autosensing w/ Auto-engage of 80Hz High Pass Filter
• Remote Control Type: BTLE Wireless
• Bluetooth Audio: Version 5.1, Profiles – SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)
• Bluetooth Profiles: SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)
• Enclosure: Bass-reflex Design with Dual Front-facing Ports, ¾” MDF Finished in Satin Walnut, Black Walnut, White Aspen, Furniture-Grade Wood Veneer
• Grille: Dark Blue (with Walnut Cabinet), Black (with Black Cabinet), White (with Matte White Cabinet) Acoustically Transparent Cloth Grille
• Net Speaker Dimensions with grille: 13.2” H x 8.3” W x 8.8” D (336mm x 210mm x 223.3mm)
• Net Speaker Weight: Primary – 15.0 lbs (6.8kg), Secondary – 14.1 lbs (6.4kg)
• Gross Shipping Dimensions: 23.5” L x 11.4” W x 18.0” H (597mm x 290mm x 458mm)
• Gross Shipping Weight: 36.5 lbs (16.6 kg)
• AC Input Voltage: 100 – 240 VAC (+/-10%), 50/60Hz

Sold as a Pair.
