Born from a desire to establish new standards in sound, design, and value

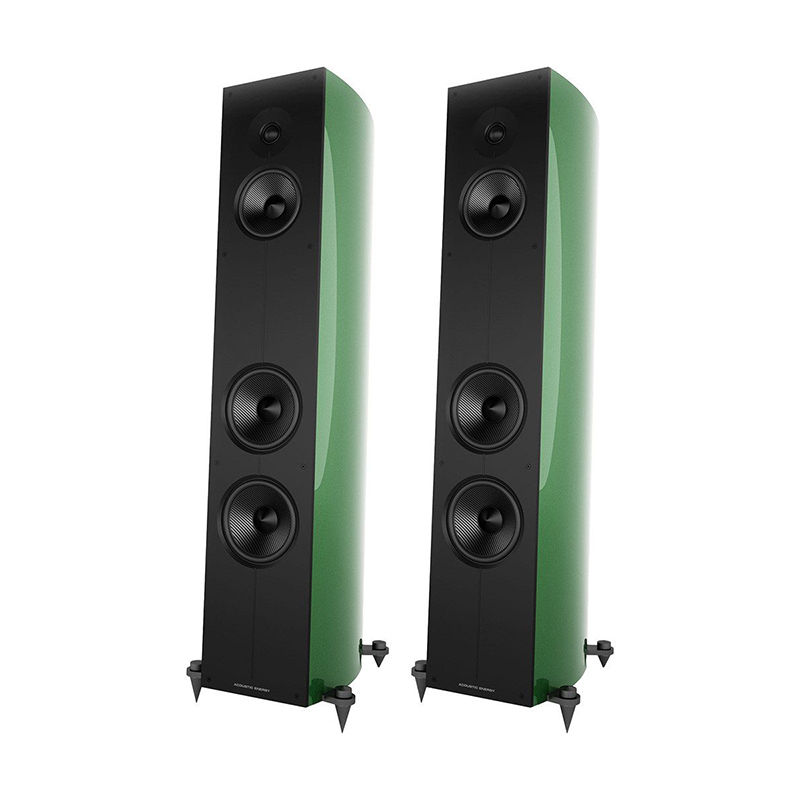

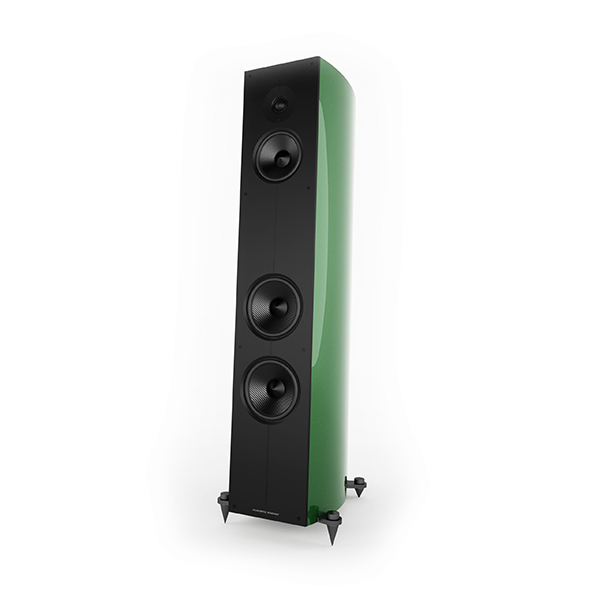

CORINIUM by Acoustic Energy is the latest addition to Acoustic Energy’s award-winning line up of loudspeakers. The culmination of a three-year project for our in-house design team, this brand-new, next-generation floor-standing model is set to establish further new standards in performance, design, and value.

Tweeter

Building on the success of our carbon fibre dome on the 500 series, we identified the need to use an even lighter dome for the Corinium to maximise the transient response of the system. So, we searched for a material lighter than carbon fibre and subsequently sourced a new soft dome material. This newly developed tweeter design has now proven to lower coloration, increase delicate high-speed transients and reproduce the very finest detail and refinement.

Mid and Bass Drivers

At the heart of the Corinium is the midrange drive unit. Covering 5 octaves it’s the key element which produces most of the sound from the loudspeaker system. The new carbon fibre cone and surround helps provide specific tonal qualities we were targeting for this speaker… offering the most natural sound and realistic musical performance. The extra width of the Corinium cabinet allowed us to house a slightly larger bass driver. We went back to basics to develop a brand-new bass alignment that combines weight, speed and slam to produce a natural, realistic sound from what’s still a fairly compact loudspeaker system. In conjunction, we developed a brand new 140mm bass driver to produce a big, powerful, controlled and natural bass sound.

Crossover

Optimised for best transient performance, our 3-way crossover blends the power output of each transducer to provide a rich, tonally balanced sound. High quality components are used throughout including air core inductors, metalized polypropylene film capacitors and metal oxide resistors. The crossover is connected to the drive units using audiophile grade internal wiring which features a patented arrangement of conductors to give the best possible musical detail and dynamic expression.

Cabinet

All these ground-breaking new drive unit and crossover developments are housed in a beautifully curved, exquisitely finished inert enclosure. The hybrid ‘Resonance Suppression Composite’ (RSC) cabinets have a minimum thickness of 22mm and vary up to 50mm for optimal performance. The 4° tilt improves the time alignment of sound to listener, whilst the 6mm ultra rigid aluminium front baffle firmly houses the drivers and isolates any cabinet resonances from the listening environment.

Technical Specifications

• Mid-Range Driver: 120mm Carbon Fibre cone
• Bass Drivers: 2 x 140mm Carbon Fibre cones
• Tweeter: 29mm Soft dome
• Design: 3 way reflex loaded with curved RSC cabinet and aluminium baffle
• Frequency Range: 32Hz – 30kHz (- 6dB) / 38Hz – 25kHz (-3dB)
• Sensitivity: 92dB/m/2.83v
• Power Handling: 200w
• Crossover Frequency: 260Hz / 3400Hz
• Impedance: 4ohms

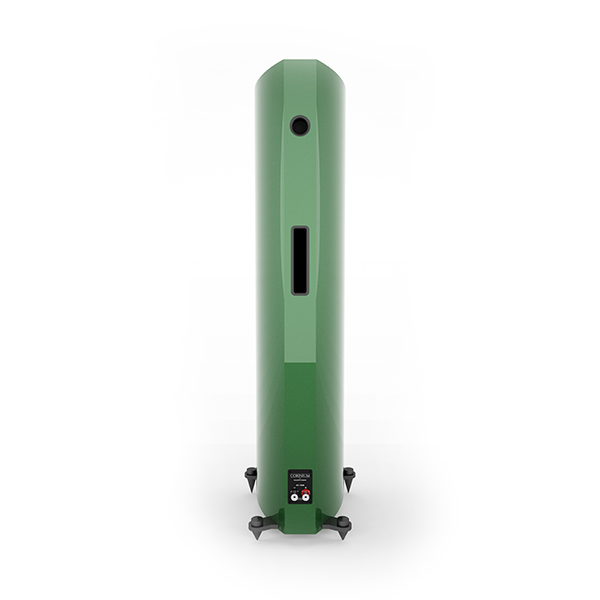

• Connections: 4mm Single wired banana sockets / 9mm spade connections
• Spike Thread: M10 x 1.5
• Dimensions: 1100mm (inc. spikes) x 280mm (Spike point to point), 315mm (edge of foot to foot) x 385mm (HxWxD)
• Weight: 40kg (per speaker)

Sold as a Pair.
