JBL Studio 8IW

$999

* Full NZ warranty
CODE: jbl-studio-8iw Brand:
QUANTITY
View Stockists

8″ (203mm) 2-way In-Wall Loudspeaker   For more powerful bass, the Studio 8IW features an 8″ (203mm) Polyplas® cone woofer and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) […]

FacebookTwitterPinterestEmail
Subscribe

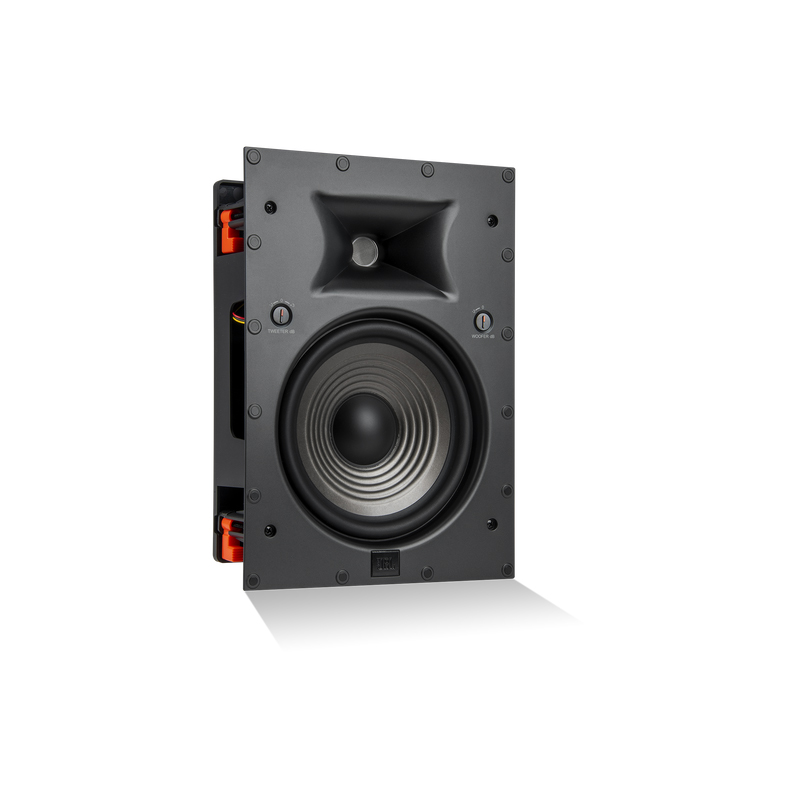

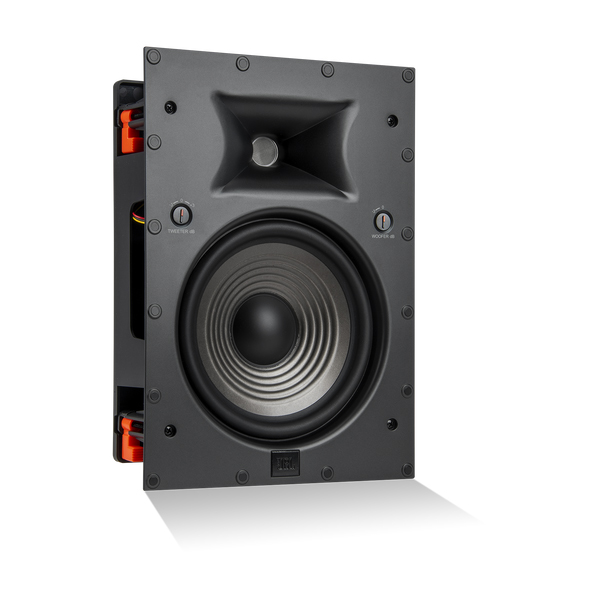

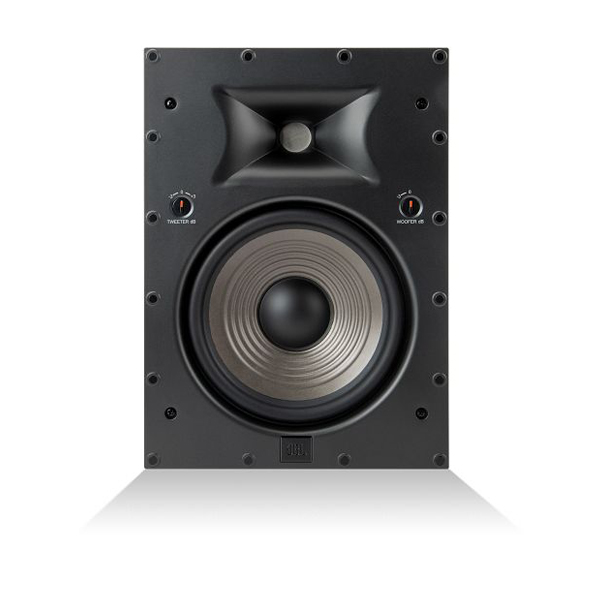

8″ (203mm) 2-way In-Wall Loudspeaker



For more powerful bass, the Studio 8IW features an 8″ (203mm) Polyplas® cone woofer and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide for more impact from front, side, and rear channels.

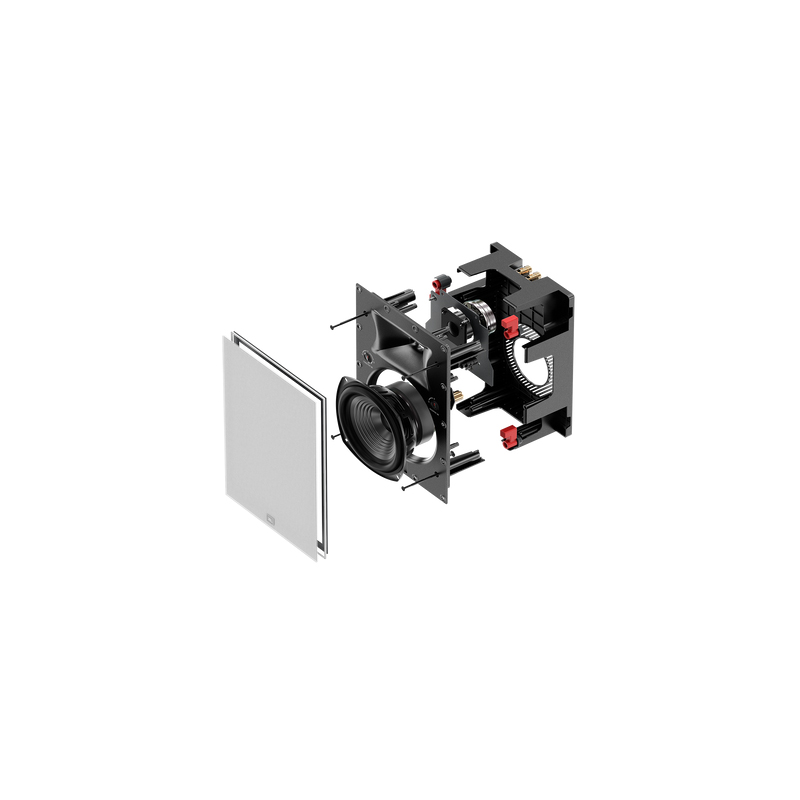

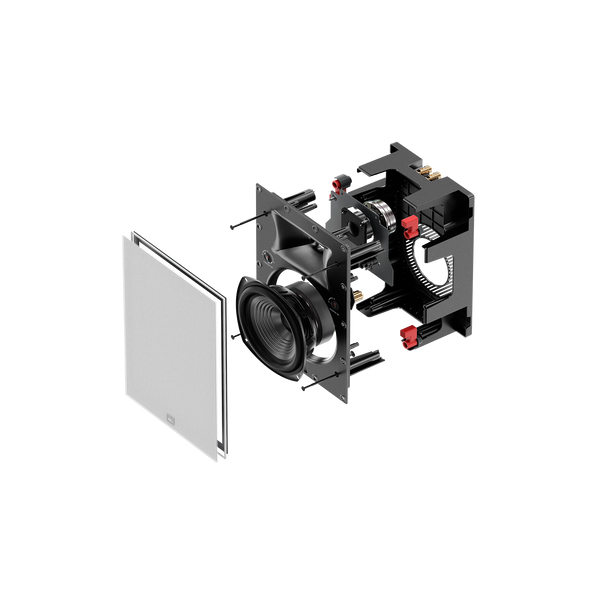

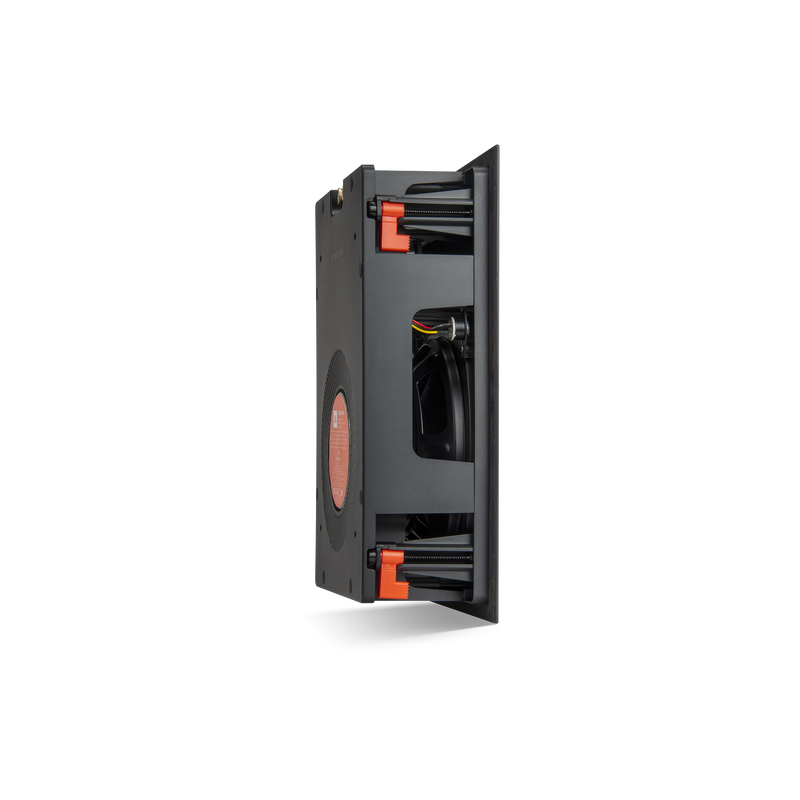

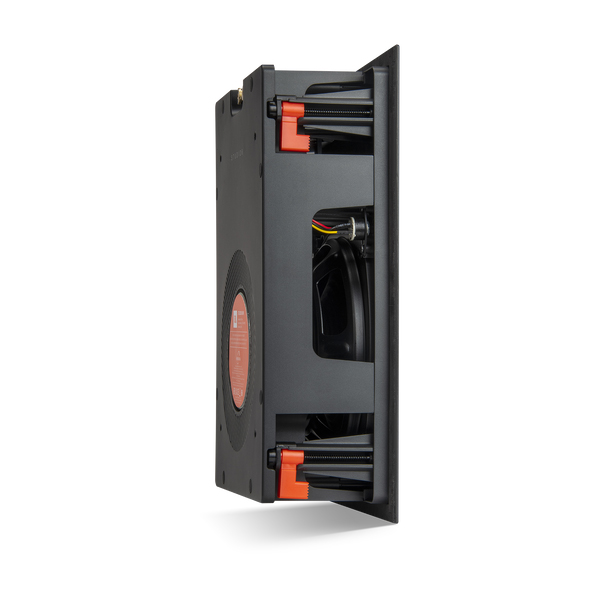

The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the 8IW visually discrete so they blend into the walls seamlessly.



Features

  • JBL compression driver
  • High-Definition Imaging (HDI) waveguide

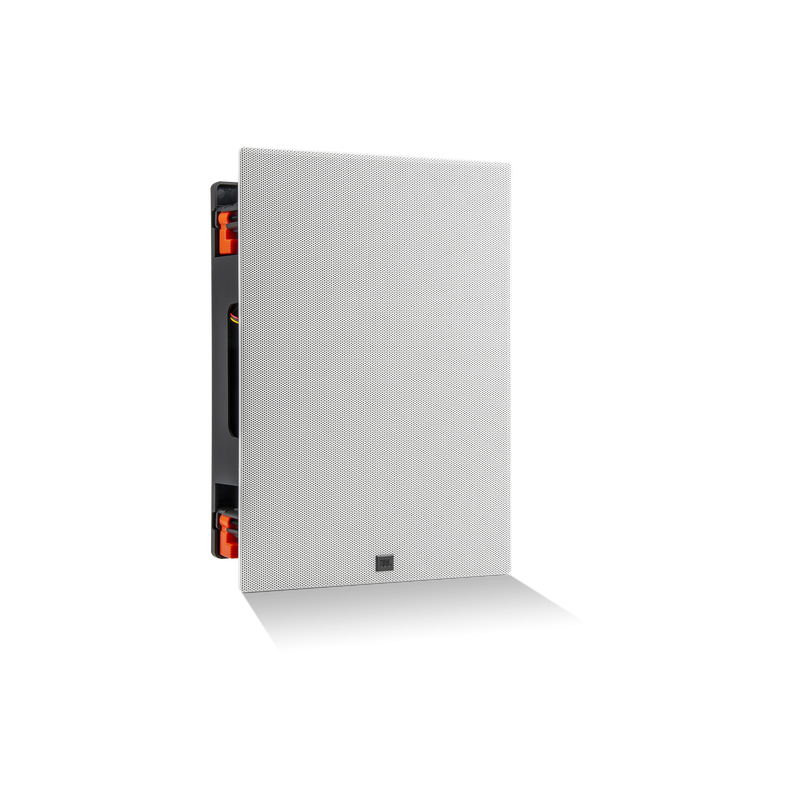

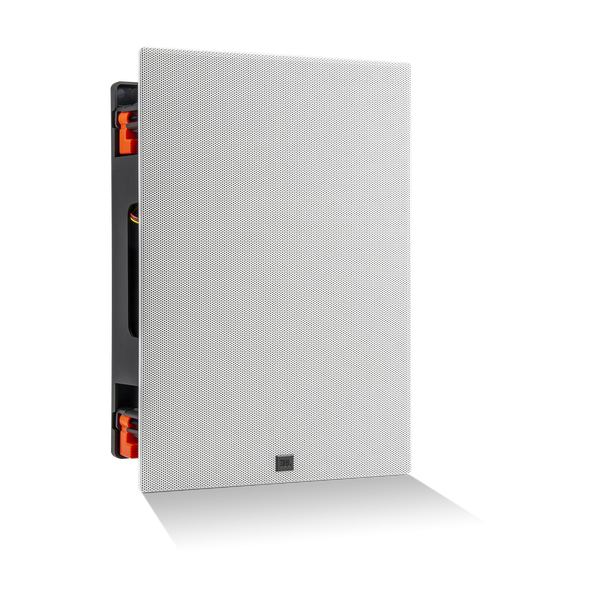

  • Paintable, zero-bezel magnetic grille
  • PolyPlas woofer
  • Treble and Bass EQ control



General Specifications

  • High Frequency Transducer: 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
  • Low Frequency Transducer: 8″ (203mm) Polyplas® woofer
  • Nominal Impedance: 6-Ohm
  • Sensitivity (2.83V@1m): 93dB
  • Power Handling: 60W RMS (250W Dynamic)
  • Recommended Amplifier Power: 50 – 80W
  • Frequency Response: 43Hz – 20kHz
  • Crossover Frequency: 2.5kHz
  • Grille Dimensions (HxW): 9.9″ x 13.7″ (251mm x 349mm)
  • Cutout Dimensions (HxW): 8.7″ x 12.5″ (221mm x 318mm)
  • Mounting Depth: 3.74in (95mm)



Sold as a single unit.
