JBL Studio 88LCR

$1,549

* Full NZ warranty
CODE: jbl-studio-88-lcr Brand:
QUANTITY
View Stockists

Dual 8″ (203mm) 2-way In-Wall Loudspeaker   When more impact across the front channels is needed the Studio 88LCR utilizes dual 8″ (203mm) Polyplas® woofers and a 1″ (25mm) Compression […]

FacebookTwitterPinterestEmail
Subscribe

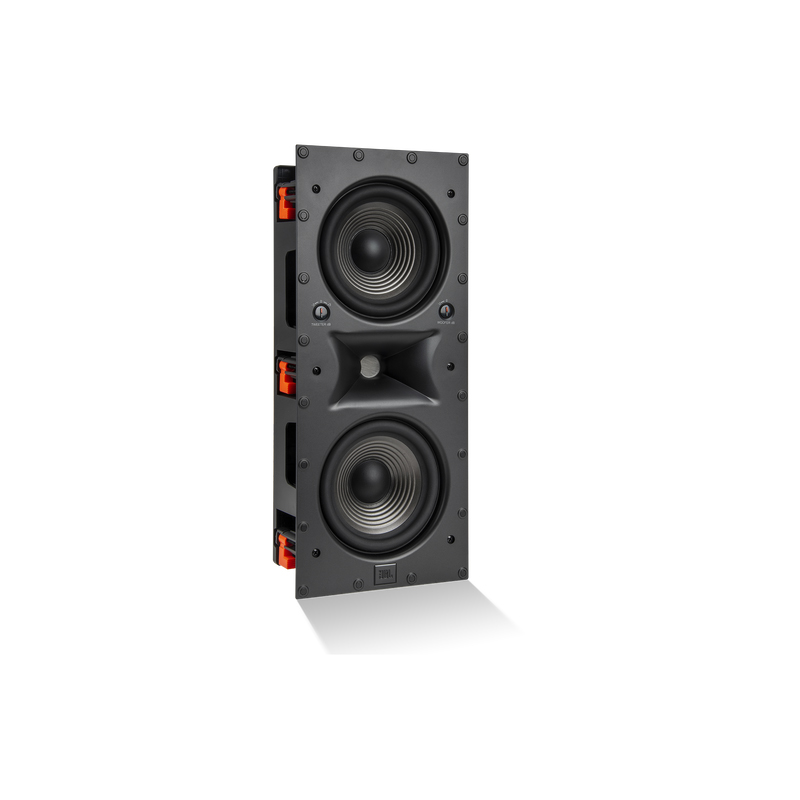

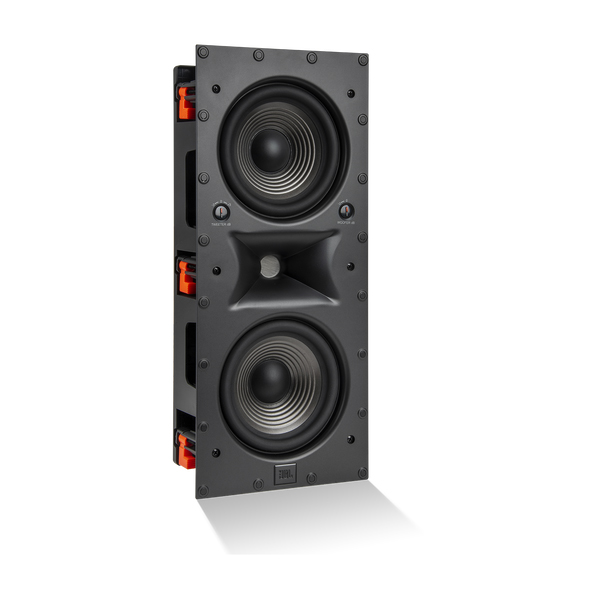

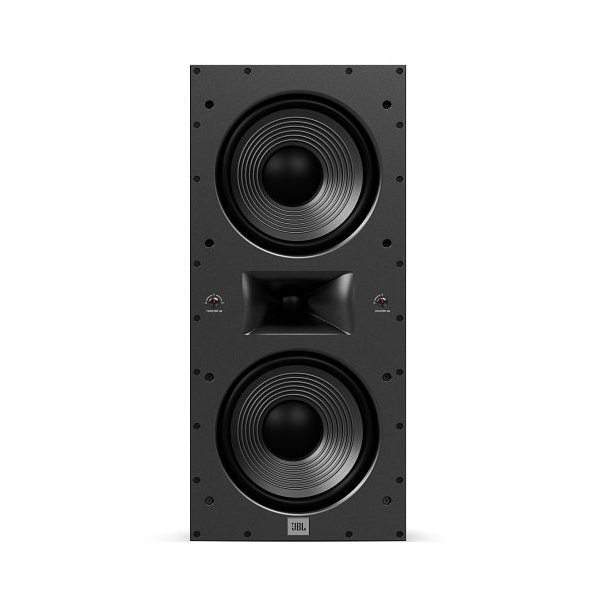

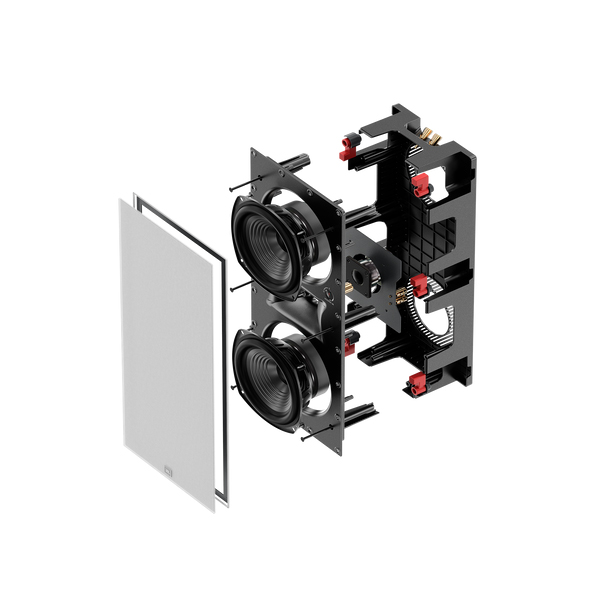

Dual 8″ (203mm) 2-way In-Wall Loudspeaker



When more impact across the front channels is needed the Studio 88LCR utilizes dual 8″ (203mm) Polyplas® woofers and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide.

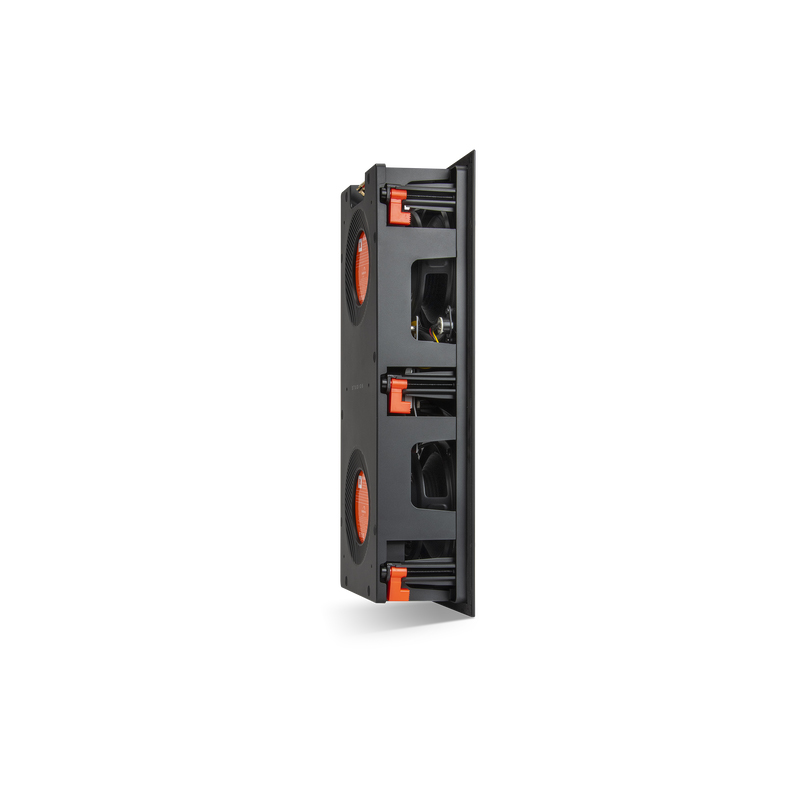

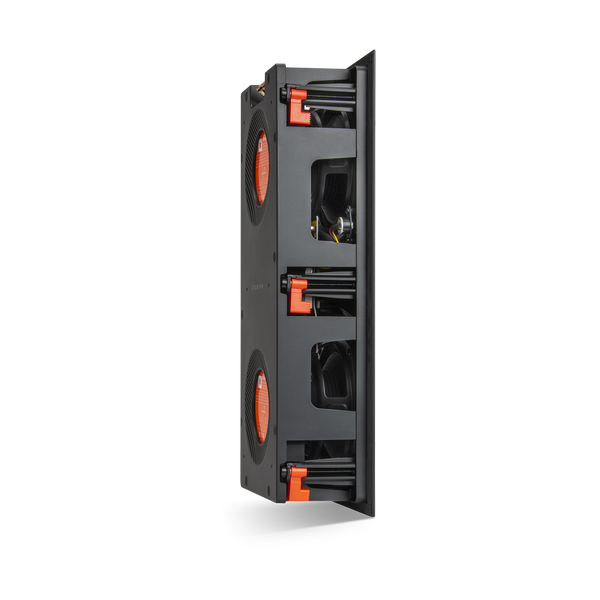

The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the 88LCR visually discrete so they blend into the walls seamlessly.



Features

  • JBL compression driver
  • High-Definition Imaging (HDI) waveguide

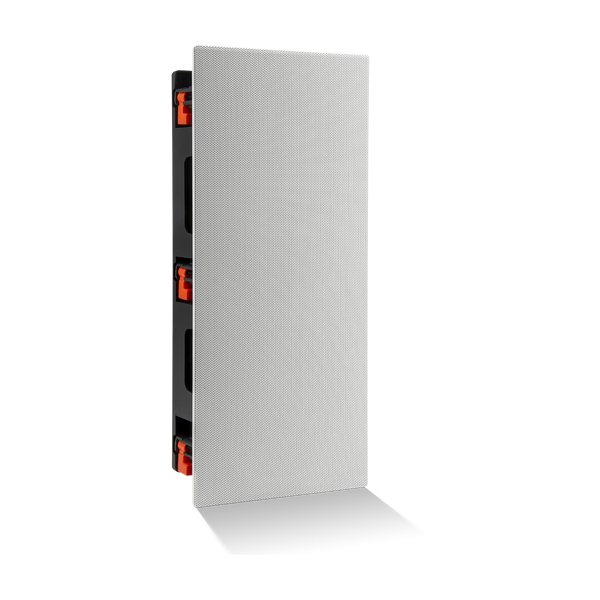

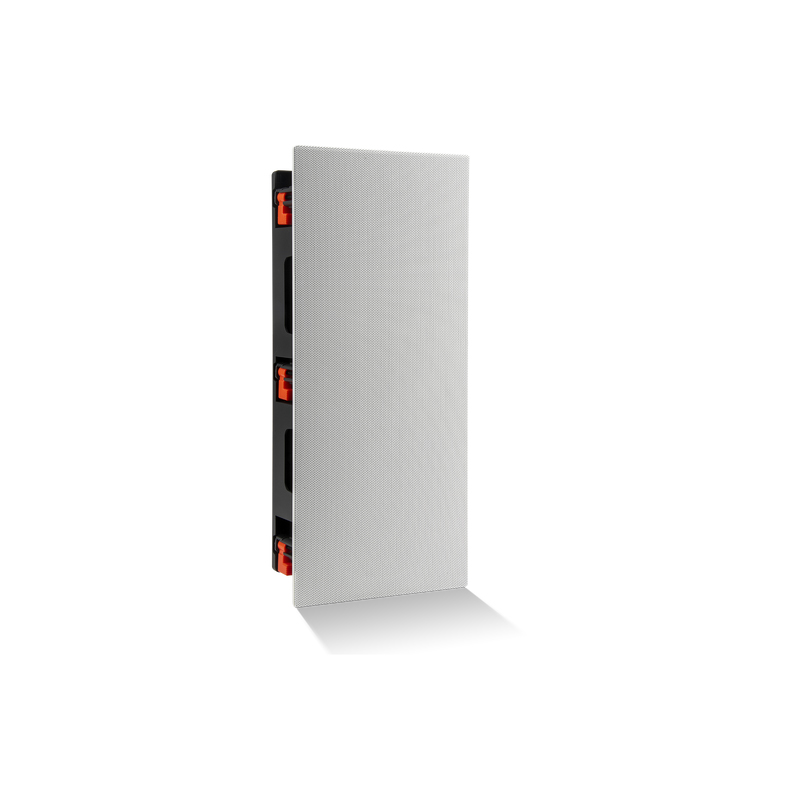

  • Paintable, zero-bezel magnetic grille
  • PolyPlas woofer
  • Treble and Bass EQ control



General Specifications

  • High Frequency Transducer: 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
  • Low Frequency Transducer: Dual 8″ (203mm) Polyplas® woofer
  • Nominal Impedance: 6-Ohm
  • Sensitivity (2.83V@1m): 96dB
  • Power Handling: 120W RMS (500W Dynamic)
  • Recommended Amplifier Power: 50 – 175W
  • Frequency Response: 47Hz – 20kHz
  • Crossover Frequency: 2.5kHz
  • Grille Dimensions (HxW): 9.9″ x 21.5″ (251mm x 547mm)
  • Cutout Dimensions (HxW): 8.7″ x 20.4″ (221mm x 517mm)
  • Mounting Depth: 3.74in (95mm)



Sold as a single unit.
