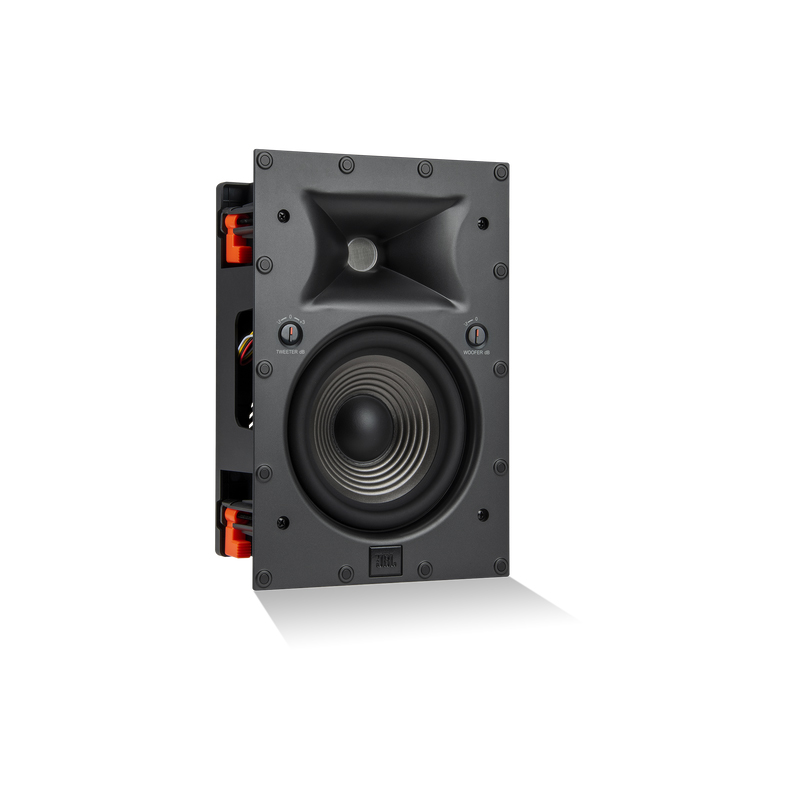

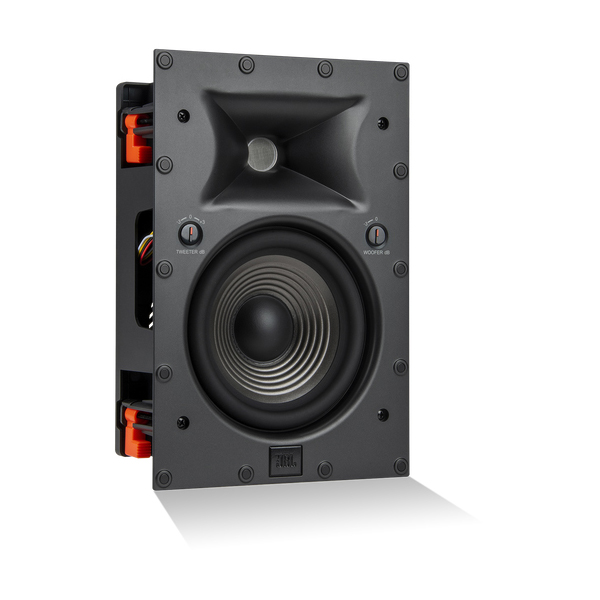

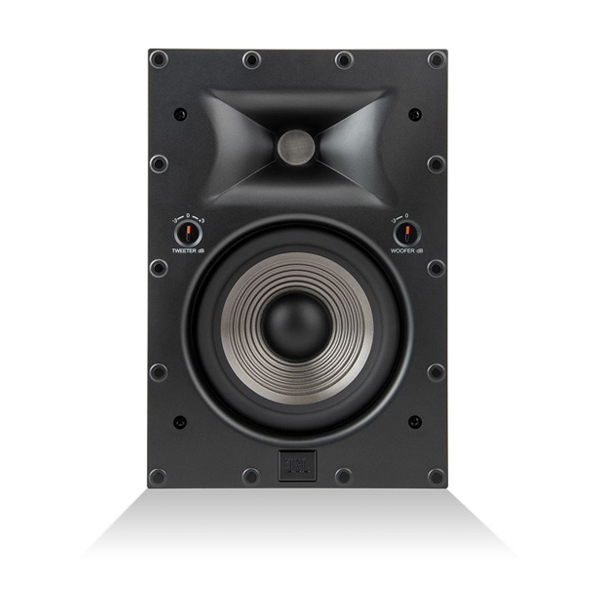

6.5″ (165mm) 2-way In-Wall Loudspeaker



Featuring a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide and a 6.5″ (165mm) Polyplas® cone woofer, the Studio 6IW perfect for use as fronts, sides, or rear channels of a high performance home theater.

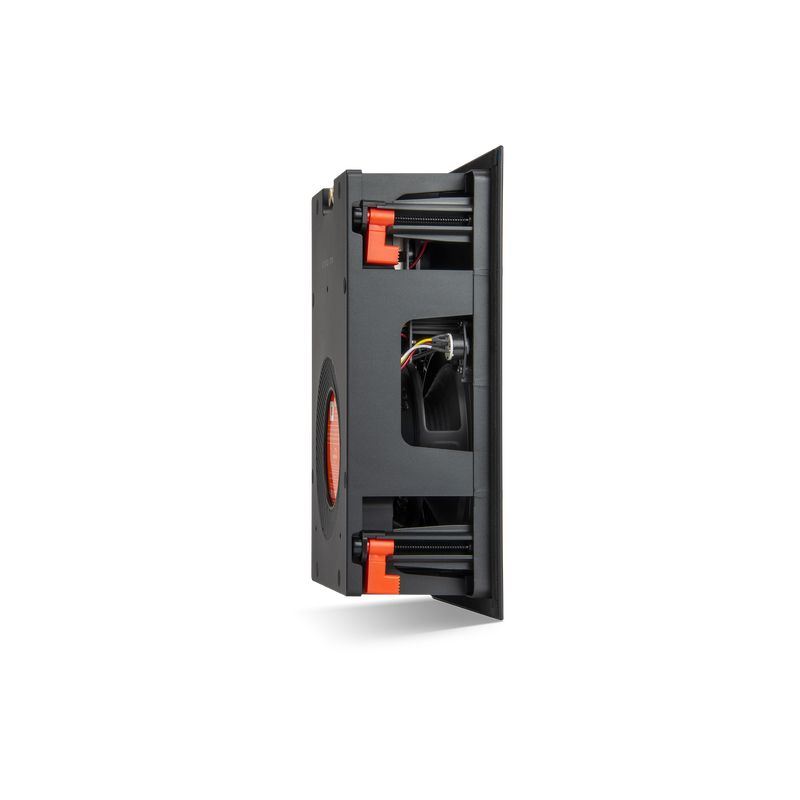

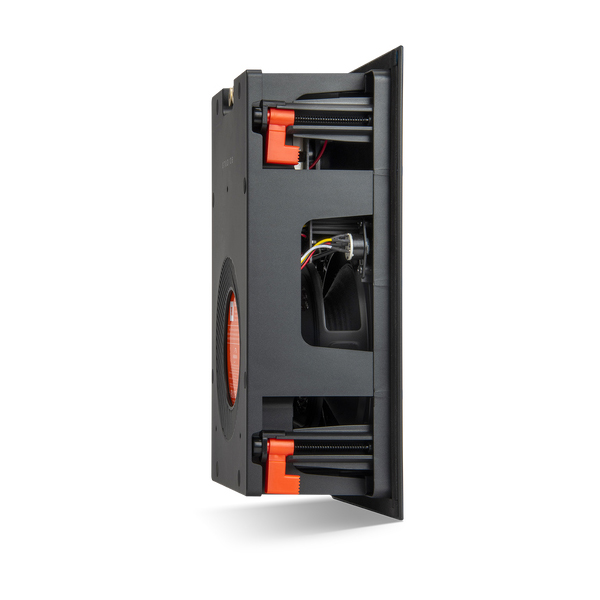

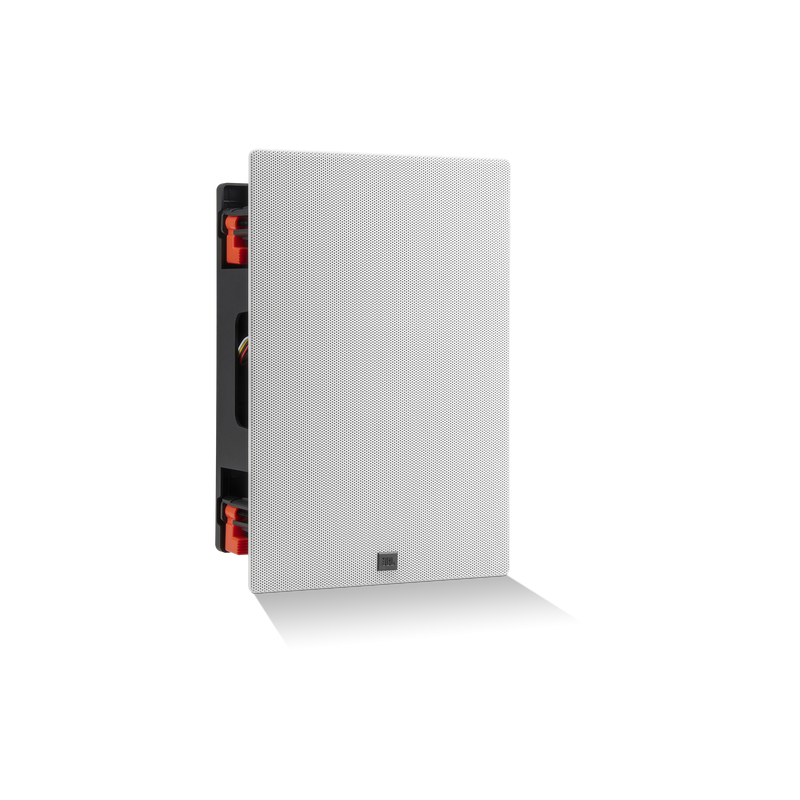

The dog leg mounting system provides easy installation and the zero bezel grilles make the 6IW visually discrete so they blend into the walls seamlessly.



Features

  • JBL compression driver
  • High-Definition Imaging (HDI) waveguide

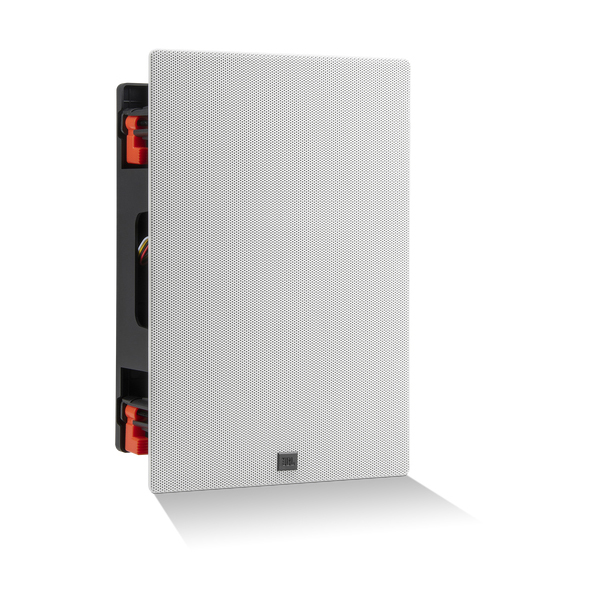

  • Paintable, zero-bezel magnetic grille
  • PolyPlas woofer
  • Treble and Bass EQ control



General Specifications

  • High Frequency Transducer: 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
  • Low Frequency Transducer: 6.5″ (165mm) Polyplas® woofer
  • Nominal Impedance: 6-Ohm
  • Sensitivity (2.83V@1m): 91dB
  • Power Handling: 50W RMS (200W Dynamic)
  • Recommended Amplifier Power: 50 – 70W
  • Frequency Response: 45Hz – 20kHz
  • Crossover Frequency: 2.5kHz
  • Grille Dimensions (HxW): 8.2″ x 12″ (209mm x 305mm)
  • Cutout Dimensions (HxW): 7.1″ x 10.8″ (180mm x 275mm)
  • Mounting Depth: 3.74in (95mm)



Sold as a single unit.
