Dual 8-inch 3-way Floorstanding Loudspeaker

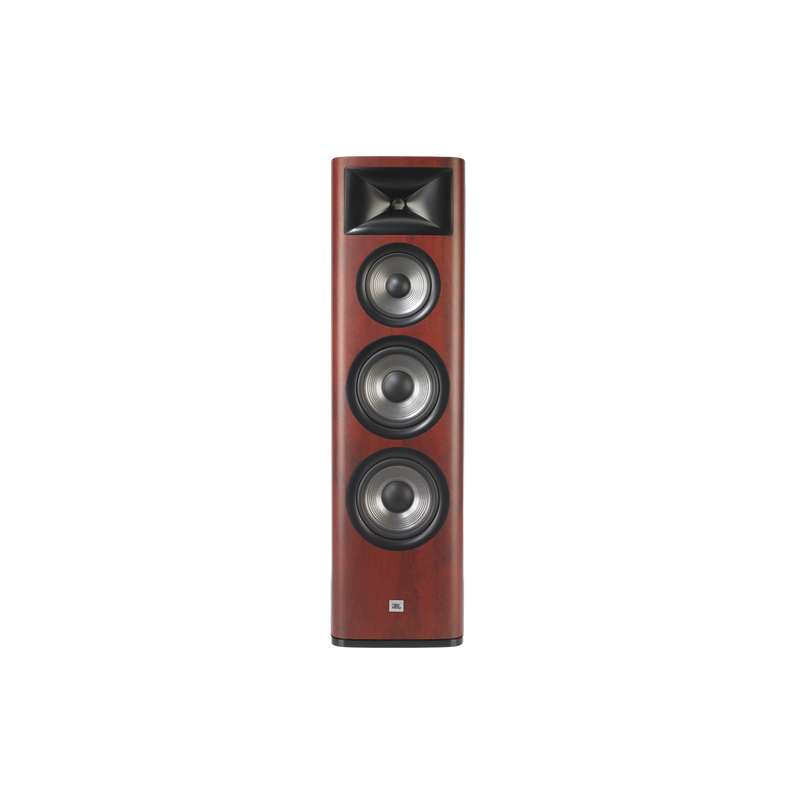

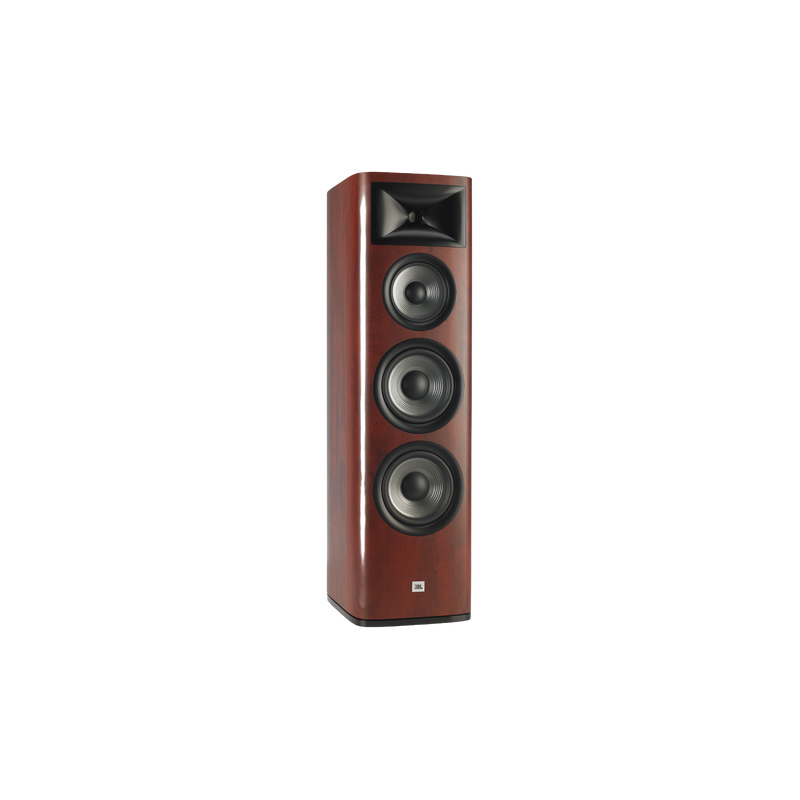

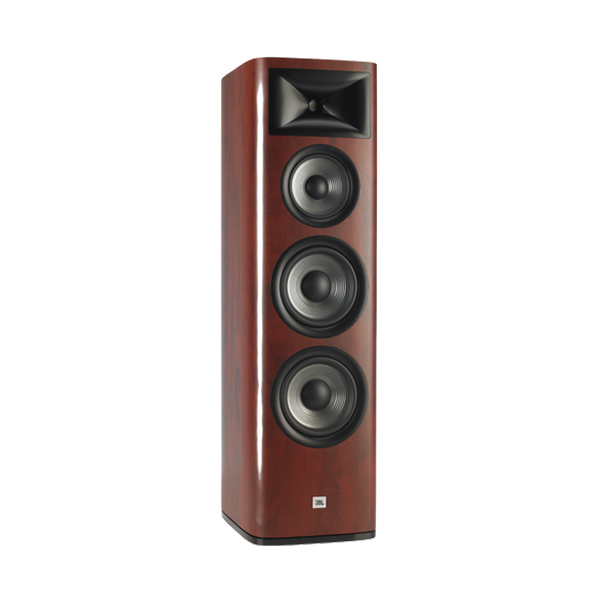

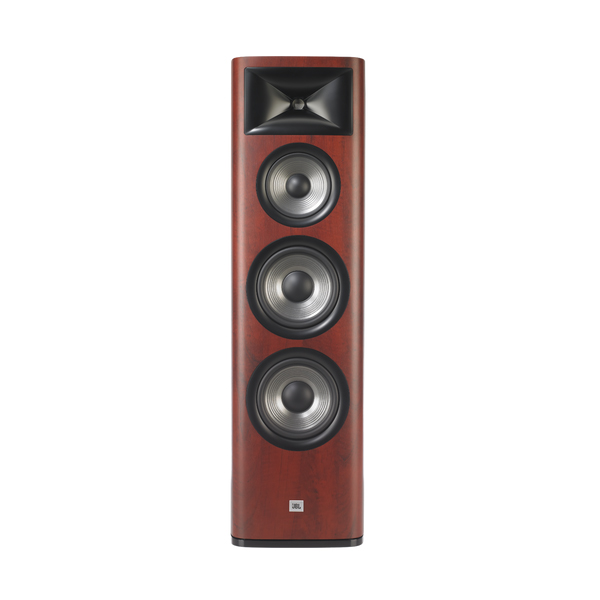

The JBL Studio 698 is a high-performance floorstanding loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6-inch midrange driver and dual 8-inch PolyPlas cone woofers.

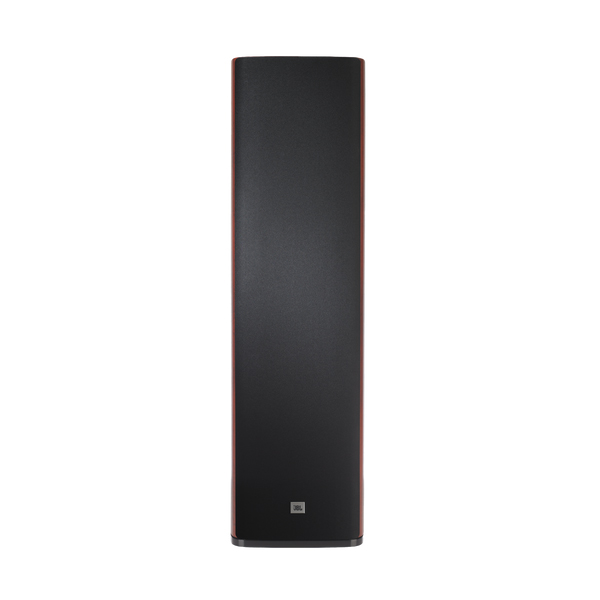

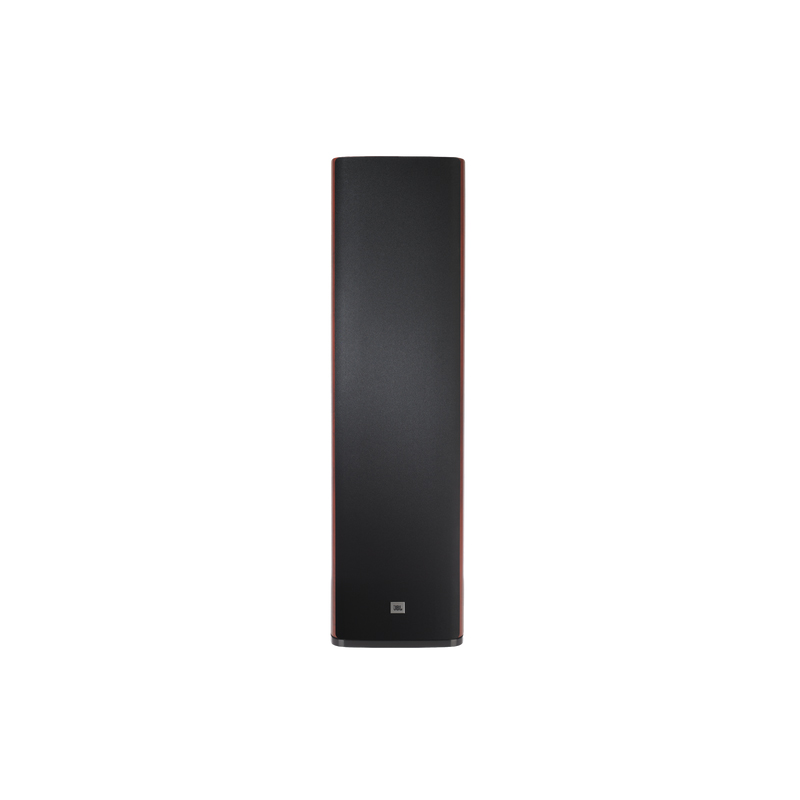

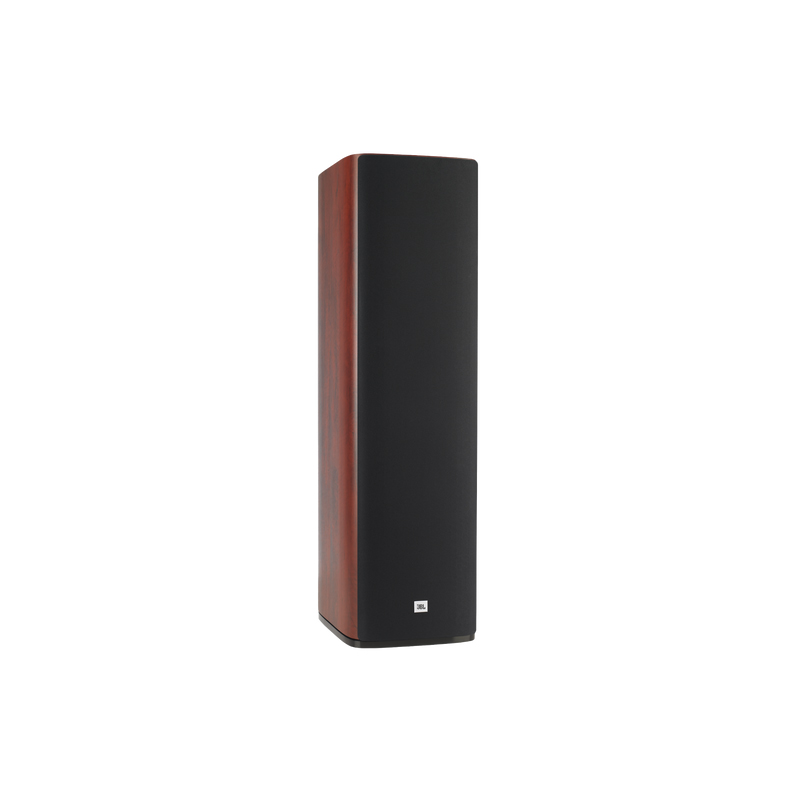

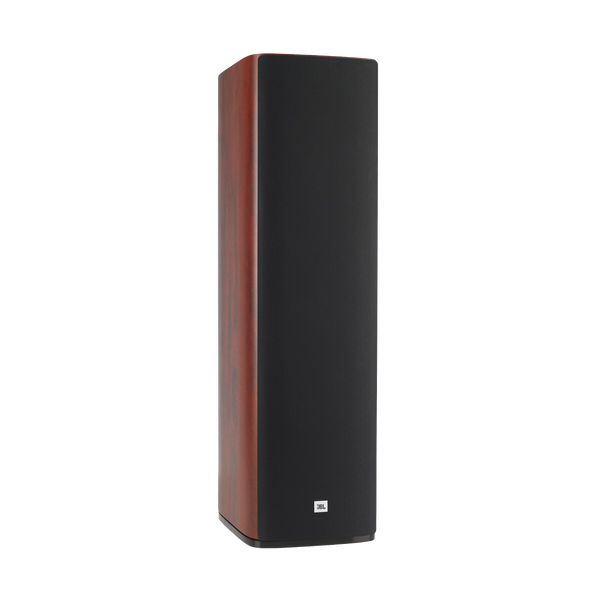

The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.



Features

  • Top-graded PolyPlas cones
  • High-quality sounding compression drivers
  • New, appealing form factor
  • High-Definition Imaging Waveguide with
  • High-Frequency Compression Driver



General Specifications

  • Type: Dual 8″, 6″ mid, 3-way compression driver floor standing loudspeaker
  • 6″ (152mm) PolyPlas Mid-range Transducer: Yes
    Dual 8” (203mm) PolyPlas cone Low-Frequency Transducer: Yes
  • High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver: Yes
  • Recommended Amplifier Power: Max 250W
  • Frequency Response: 36Hz – 40kHz
  • Sensitivity: 90dB @ 1M, 2.83V
  • Nominal Impedance: 6 Ohms
  • Crossover Frequencies: 320 Hz, 1.8 kHz

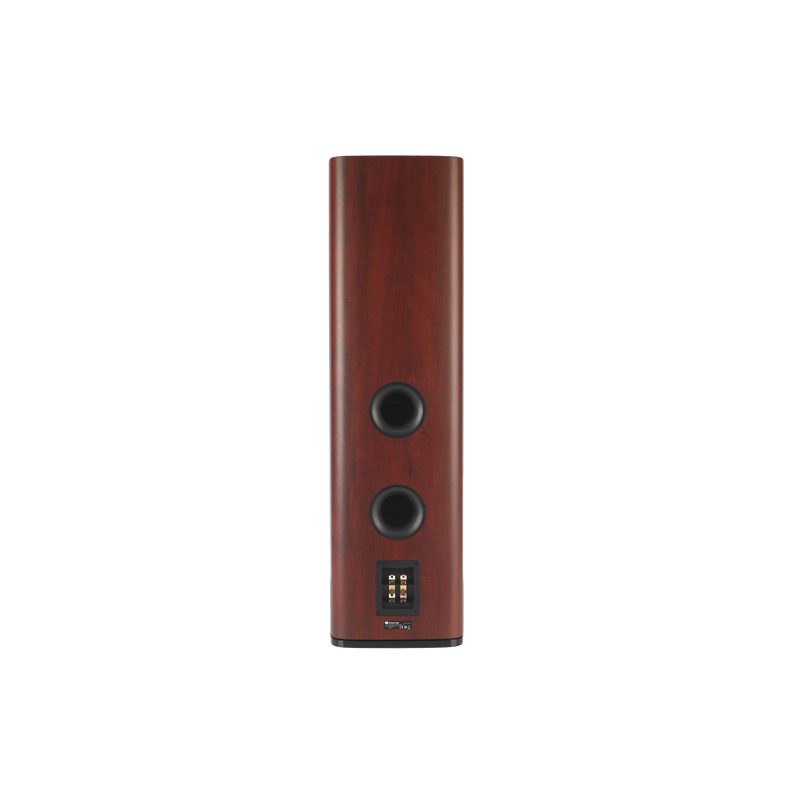

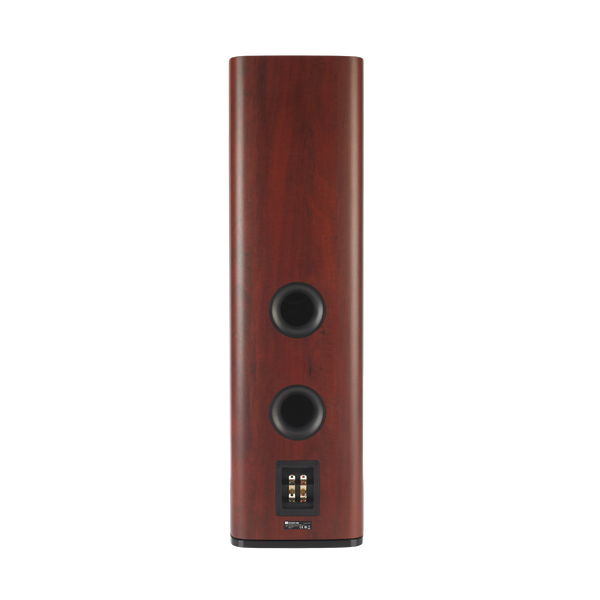

  • Enclosure Type: Bass-Reflex via Rear-Firing Tuned Port
  • Dimensions (W x D x H): 300 x 400 x 1058mm



Sold as a Pair.
