JBL Studio 66 LCR

$1,249

* Full NZ warranty
CODE: jbl-studio-66-lcr Brand:
QUANTITY
View Stockists

Dual 6.5″ (165mm) 2-way In-Wall Loudspeaker   With dual 6.5″ (165mm) Polyplas® woofers and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide the Studio 66LCR is perfect for […]

FacebookTwitterPinterestEmail
Subscribe

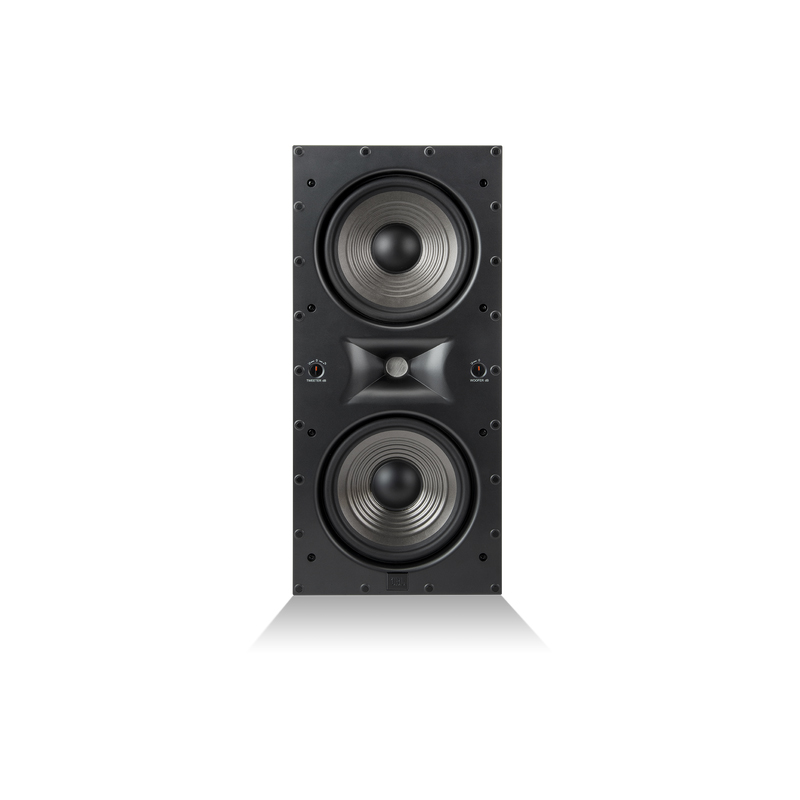

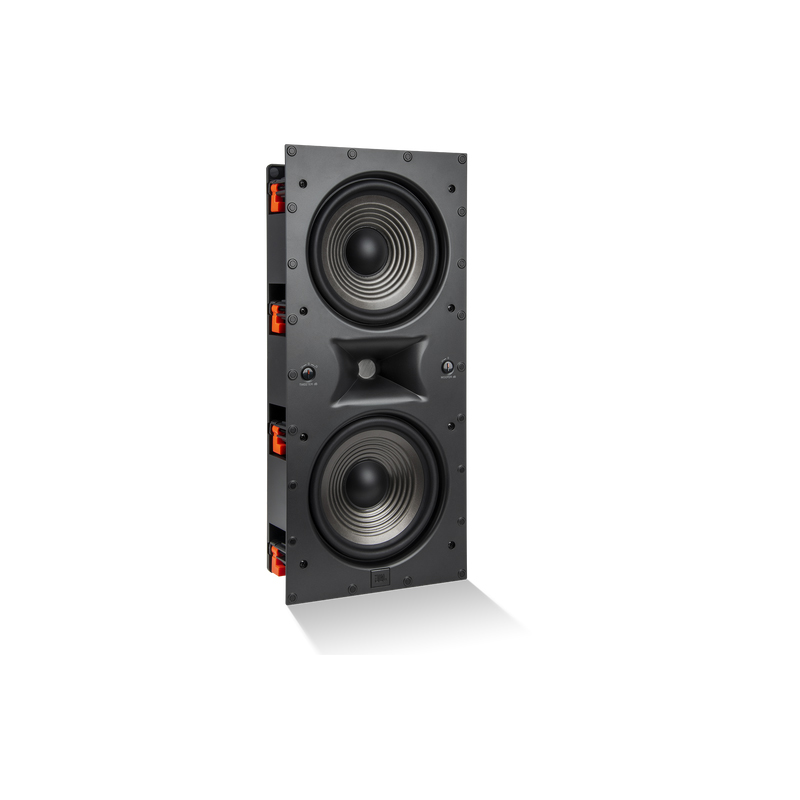

Dual 6.5″ (165mm) 2-way In-Wall Loudspeaker

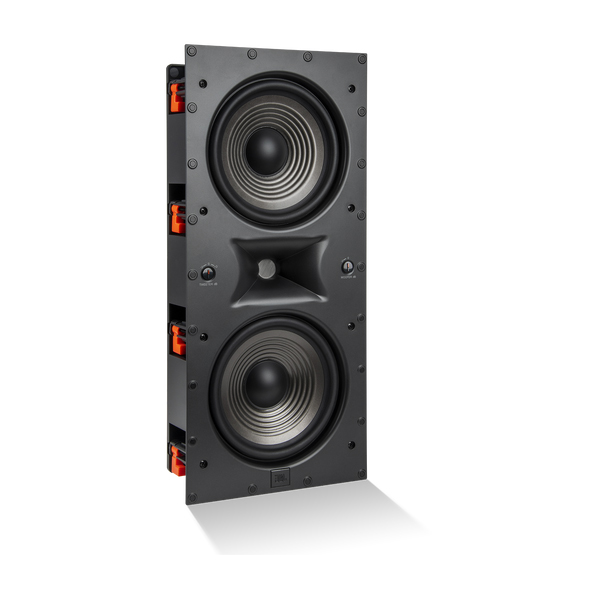

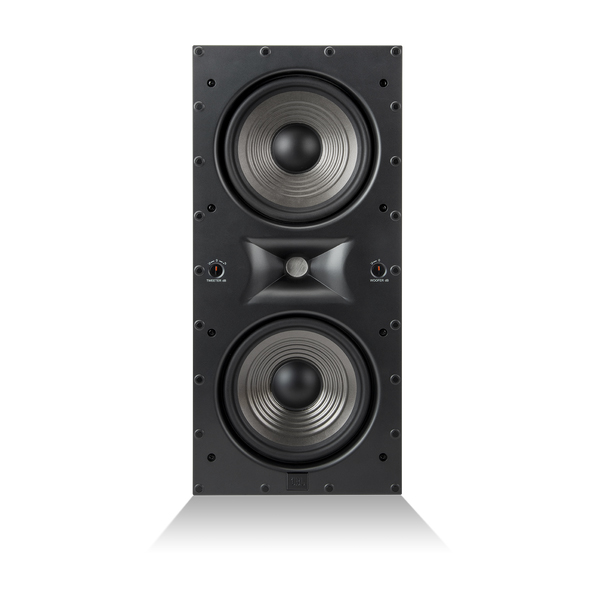

With dual 6.5″ (165mm) Polyplas® woofers and a 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide the Studio 66LCR is perfect for front channels in any home theater.

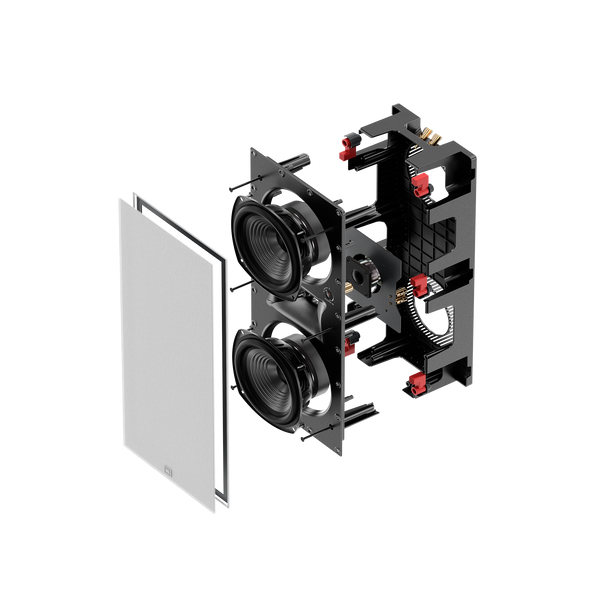

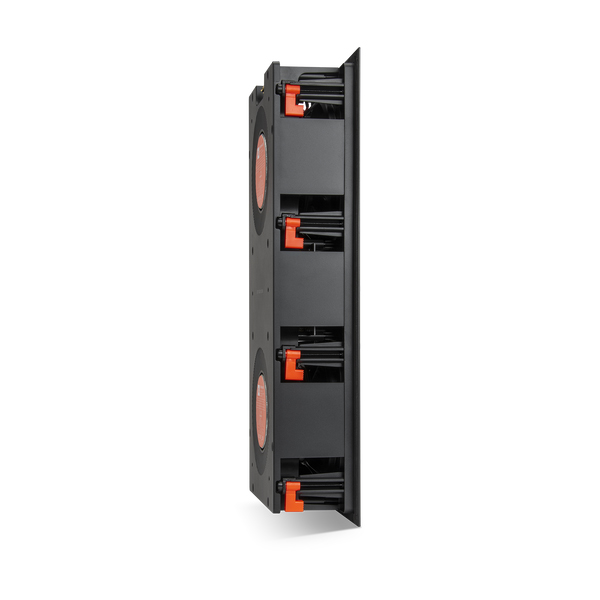

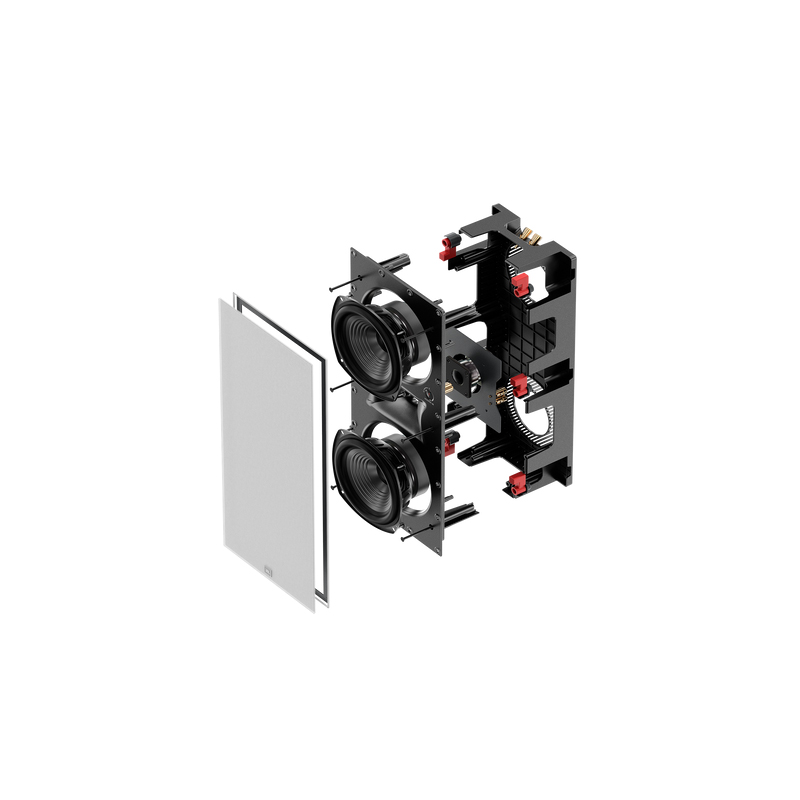

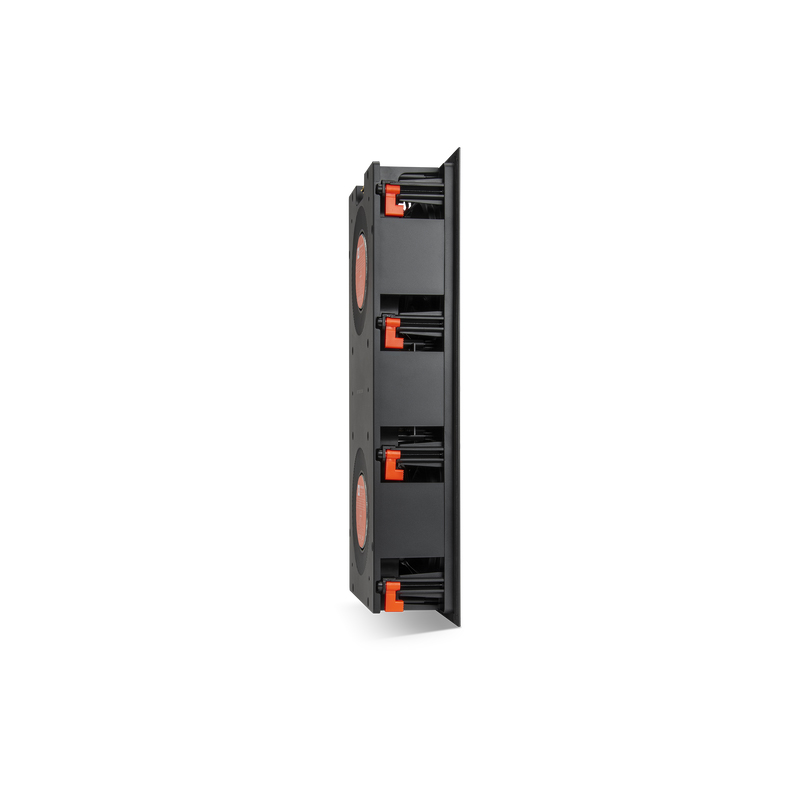

The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the 66LCR visually discrete so they blend into the walls seamlessly.



Features

  • JBL compression driver
  • High-Definition Imaging (HDI) waveguide

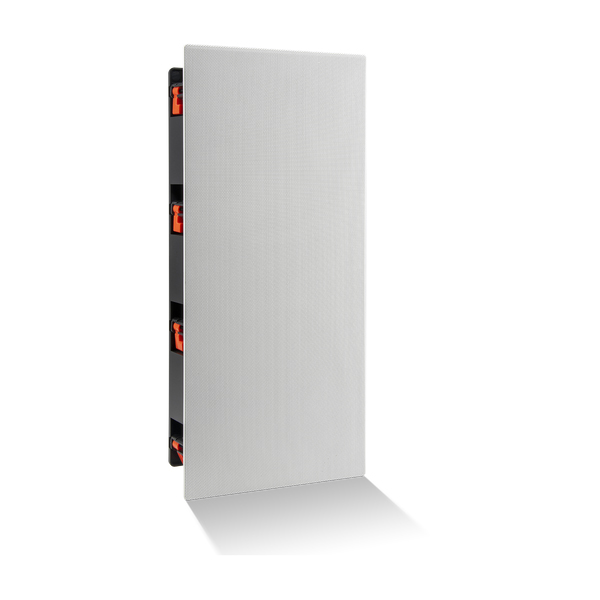

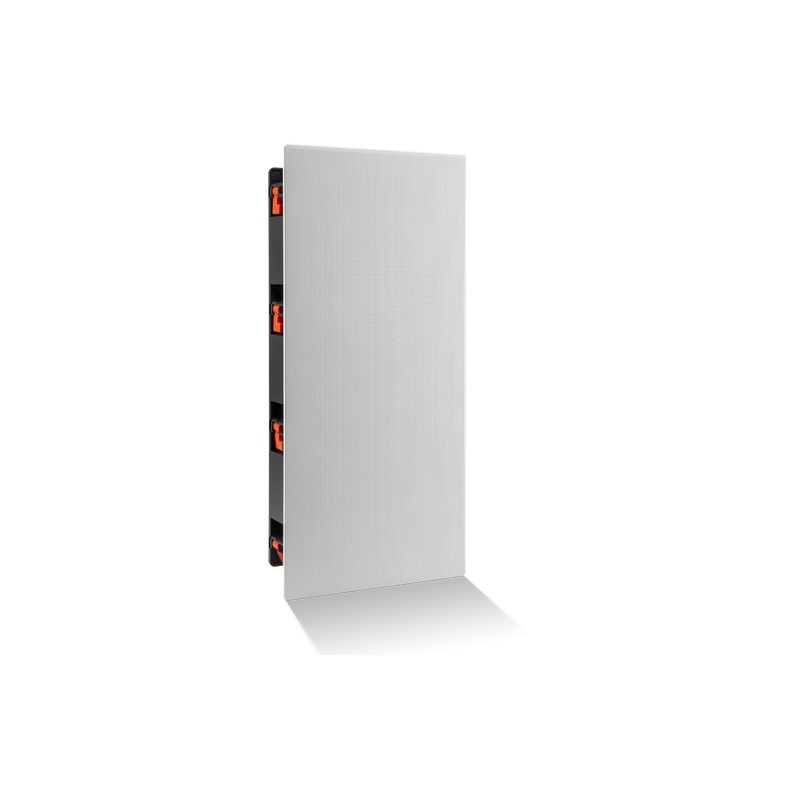

  • Paintable, zero-bezel magnetic grille
  • PolyPlas woofer
  • Treble and Bass EQ control



General Specifications

  • High Frequency Transducer: 1″ (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
  • Low Frequency Transducer: 8″ (203mm) Polyplas® woofer
  • Nominal Impedance: 6-Ohm
  • Sensitivity (2.83V@1m): 93dB
  • Power Handling: 60W RMS (250W Dynamic)
  • Recommended Amplifier Power: 50 – 80W
  • Frequency Response: 43Hz – 20kHz
  • Crossover Frequency: 2.5kHz
  • Grille Dimensions (HxW): 9.9″ x 13.7″ (251mm x 349mm)
  • Cutout Dimensions (HxW): 8.7″ x 12.5″ (221mm x 318mm)
  • Mounting Depth: 3.74in (95mm)



Sold as a single unit.
