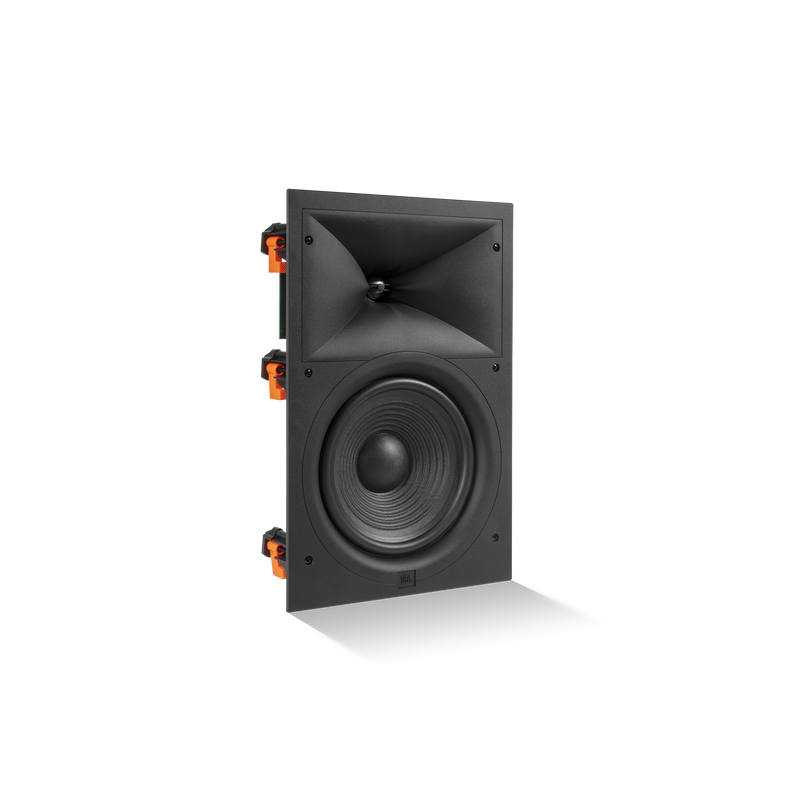

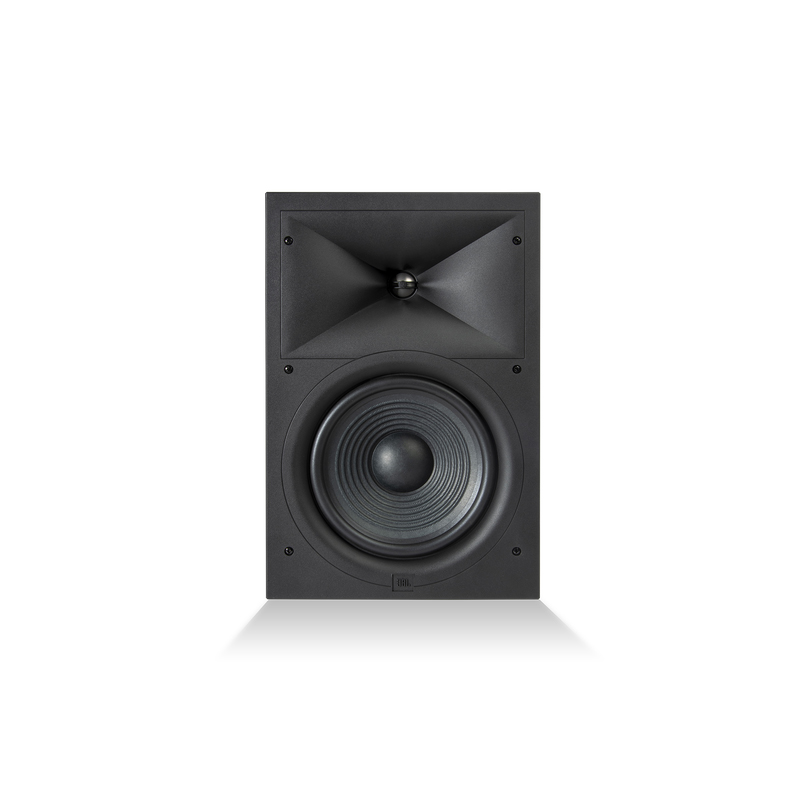

In-Wall Loudspeaker

For more powerful bass, the Stage 280W features an 8″ (200mm) Polycellulose cone woofer and a 1″ (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide.

A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

Features

• Rigid Baffle design with acoustic smoothing for improved transducer integration
• Aluminum Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
• High-Definition Imaging (HDI™) horns with optimized geometry for smooth dispersion and low distortion
• Harman target curve acoustic performance for smooth accurate sound over a large listening area

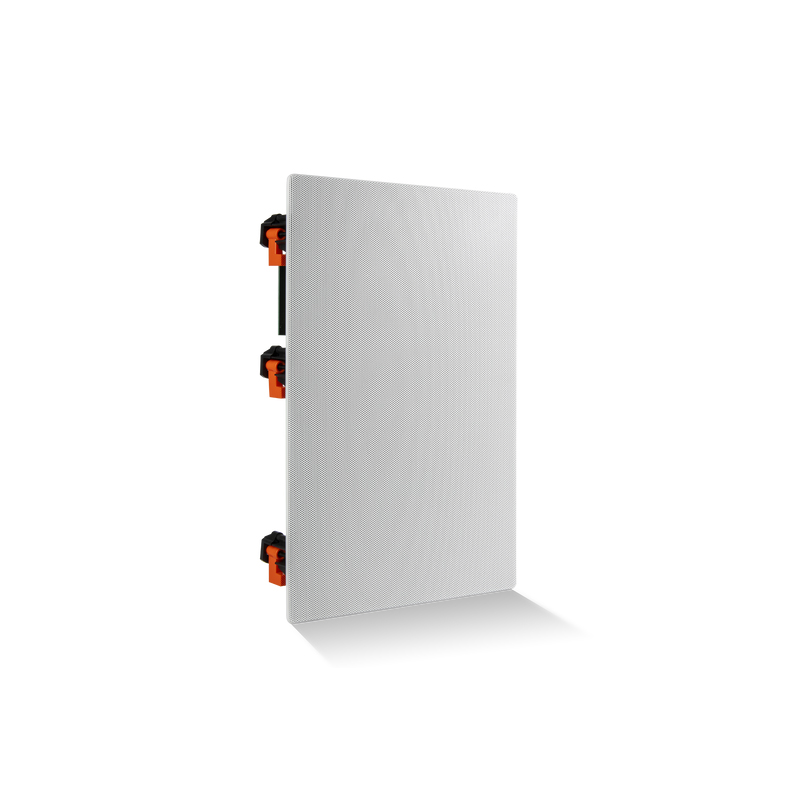

• Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
• XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material

General Specifications

• High Frequency Transducer: 1″ (25mm) Aluminum dome with
• High-Definition Imaging (HDI™) horn
• Low Frequency Transducer: 8″ (200mm) Polycellulose cone woofer
• Recommended Amplifier Power (Full Range): 20-120W RMS
• Frequency Response: 42Hz-25kHz (-6dB on-axis)
• Sensitivity (2.83V@1m): 90dB
• Nominal Impedance: 8ohm
• Crossover Frequency: 1700Hz
• Inputs: Nickel-plated spring-loaded connectors
• Grille Dimensions: H 15.7in (400mm) x W 10.5in (266mm)
• Cutout Dimensions: H 14.6in (372mm) x W 9.4in (238mm)
• Mounting Depth: 3.9in (98mm)
• Product Weight (Kg): 2.8Kg
• Shipping Carton Dimensions: L 17.8in (453mm) x W 12.5in (318mm) x H 5.5in (140mm)
• Shipping Carton Weight: 8.38lbs (3.8Kg)

Sold as a single unit.
