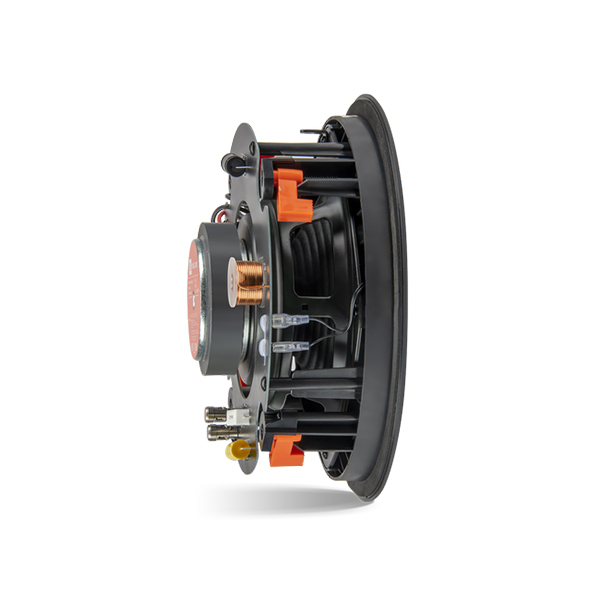

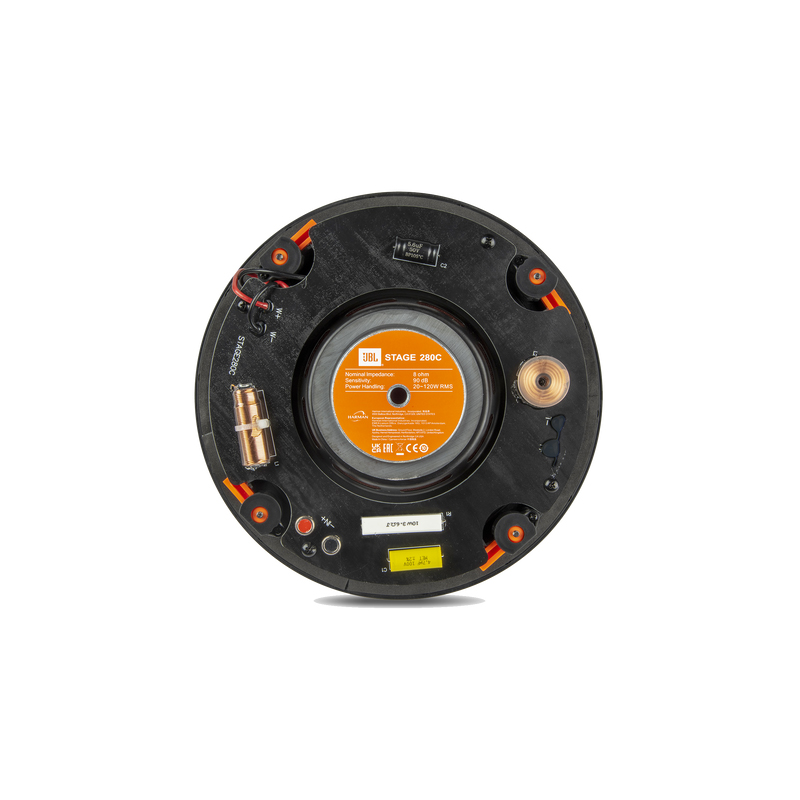

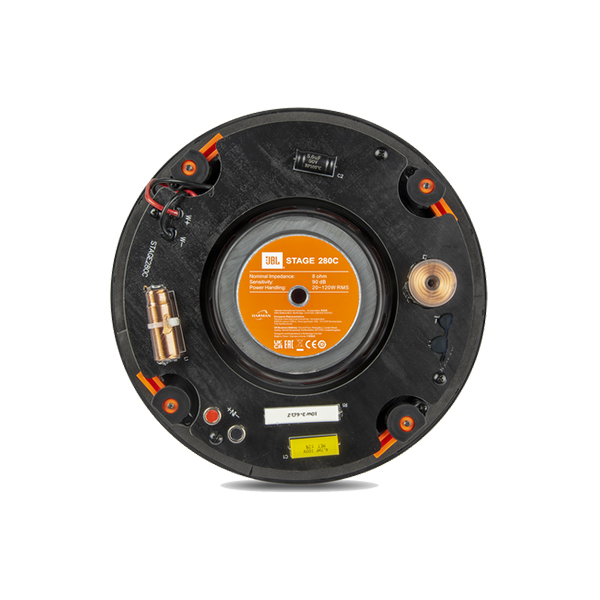

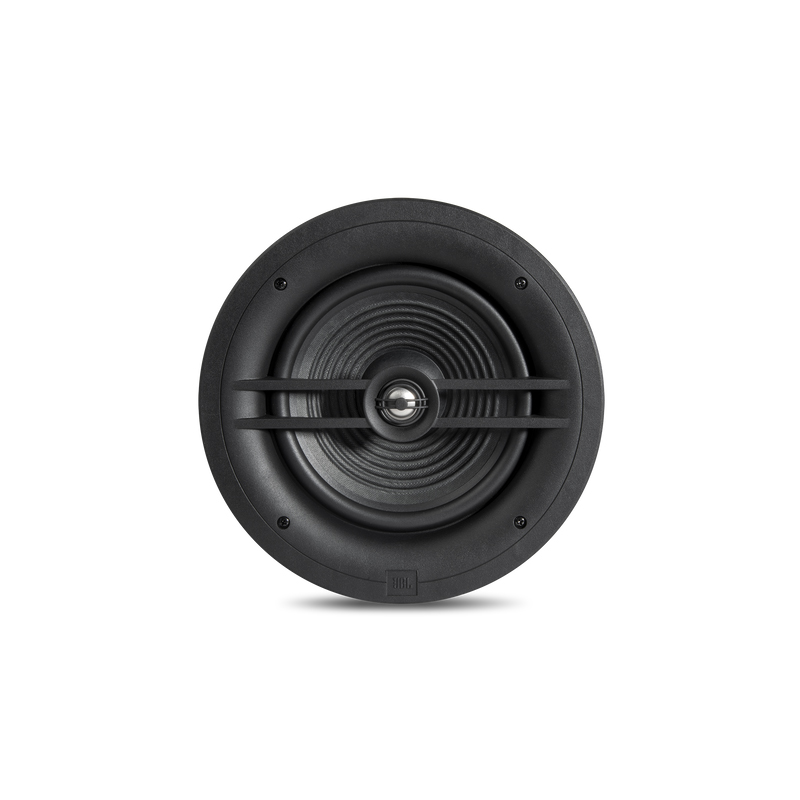

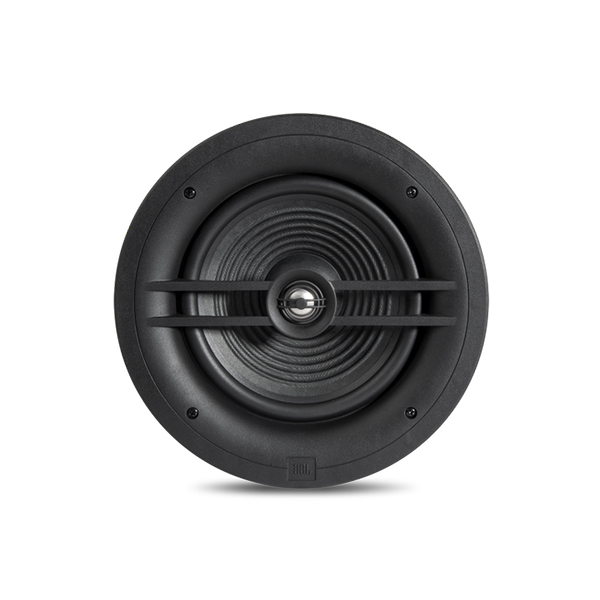

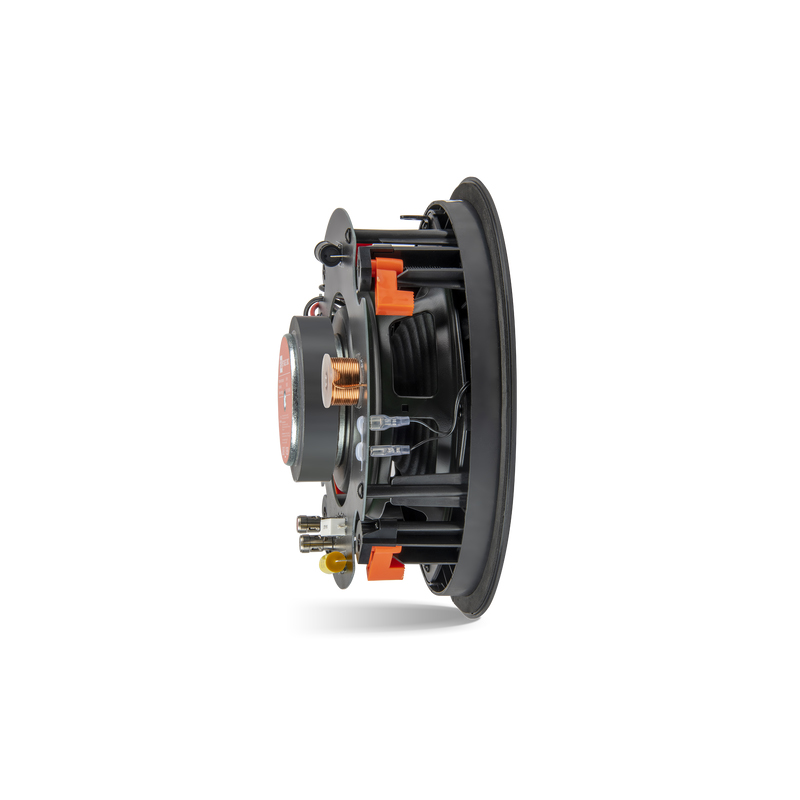

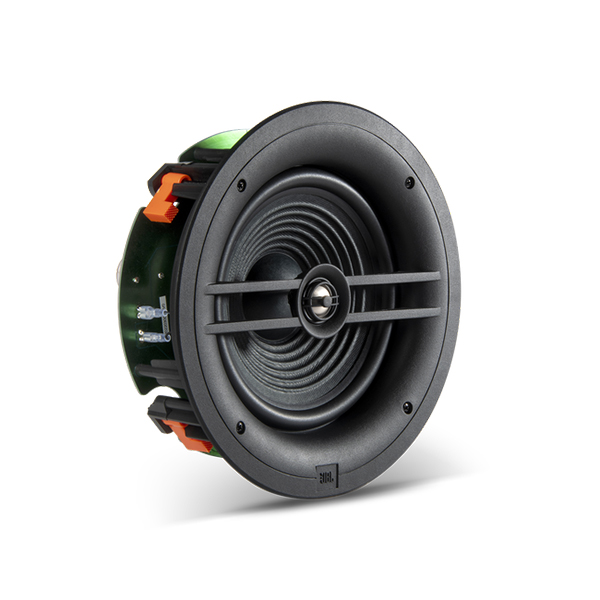

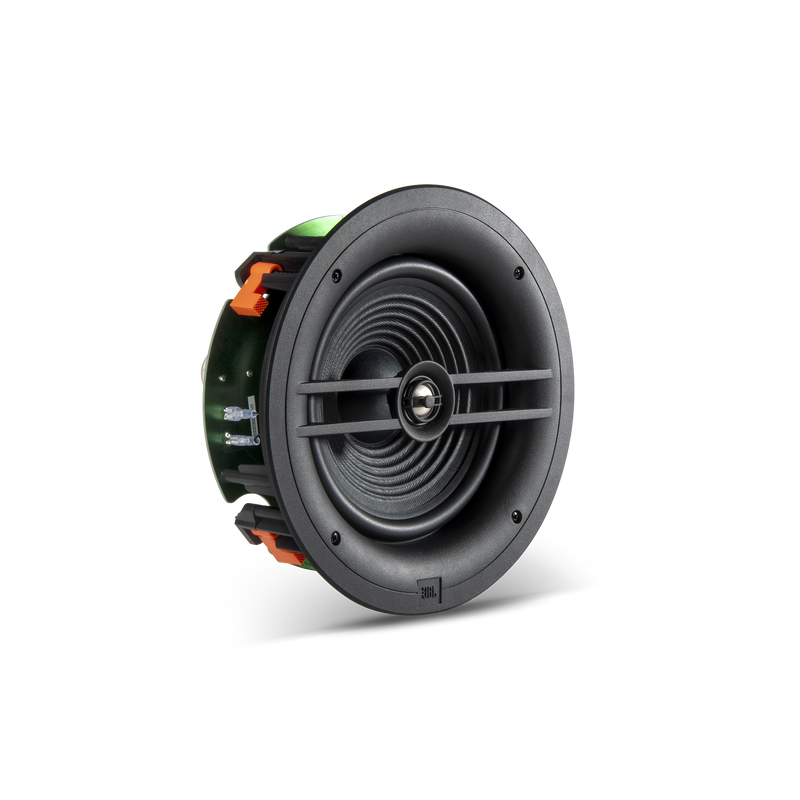

JBL Stage 280C
$449
* Full NZ warranty
2-way 8″ In-Ceiling Loudspeaker The Stage 280C has an 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with an acoustic lens waveguide. A visually discrete zero […]
2-way 8″ In-Ceiling Loudspeaker
The Stage 280C has an 8″ (200mm) Polycellulose cone woofer and 1″ (25mm) Aluminum dome tweeter with an acoustic lens waveguide.
A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing and acoustic lens tweeters have been incorporated into the design to ensure that the sound is clear and accurate.
Features
- Rigid Baffle design with acoustic smoothing for improved transducer integration
- Aluminum Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
- High-Definition Imaging (HDI™) horns with optimized geometry for smooth dispersion and low distortion
- Harman target curve acoustic performance for smooth accurate sound over a large listening area
- Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
- XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material
General Specifications
- High Frequency Transducer: 1″ (25mm) Aluminum dome with Acoustic Lens
- Low Frequency Transducer: 8″ (200mm) Polycellulose cone woofer
- Recommended Amplifier Power (Full Range): 20-120W RMS
- Frequency Response: 42Hz-25kHz (-6dB on-axis)
- Sensitivity (2.83V@1m): 90dB
- Nominal Impedance: 8ohm
- Crossover Frequency: 3400Hz
- Inputs: Nickel-plated spring-loaded connectors
- Grille Dimensions: Dia 10.8in (275mm)
- Cutout Dimensions: Dia 9.6in (244mm)
- Mounting Depth: 4.3in (108mm)
- Product Weight (Kg): 2.2Kg
- Shipping Carton Dimensions: L 12.7in (322mm) x W 12.7in (322mm) x H 5.6in (142mm)
- Shipping Carton Weight: 6.97lbs (3.16Kg)
Sold as a single unit.
