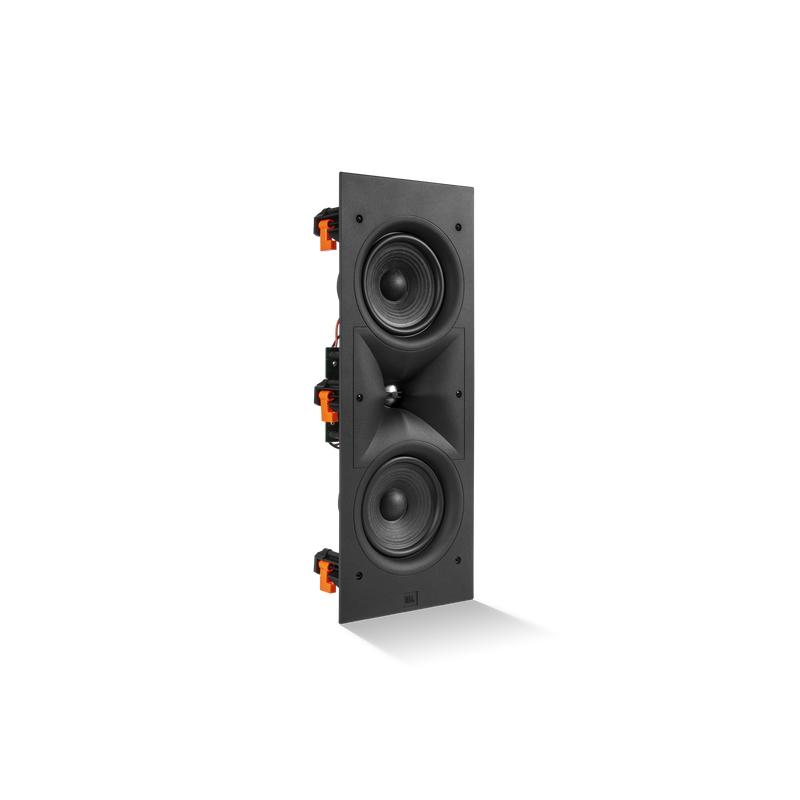

2-way Dual 5.25in (133mm) In-Wall Loudspeaker

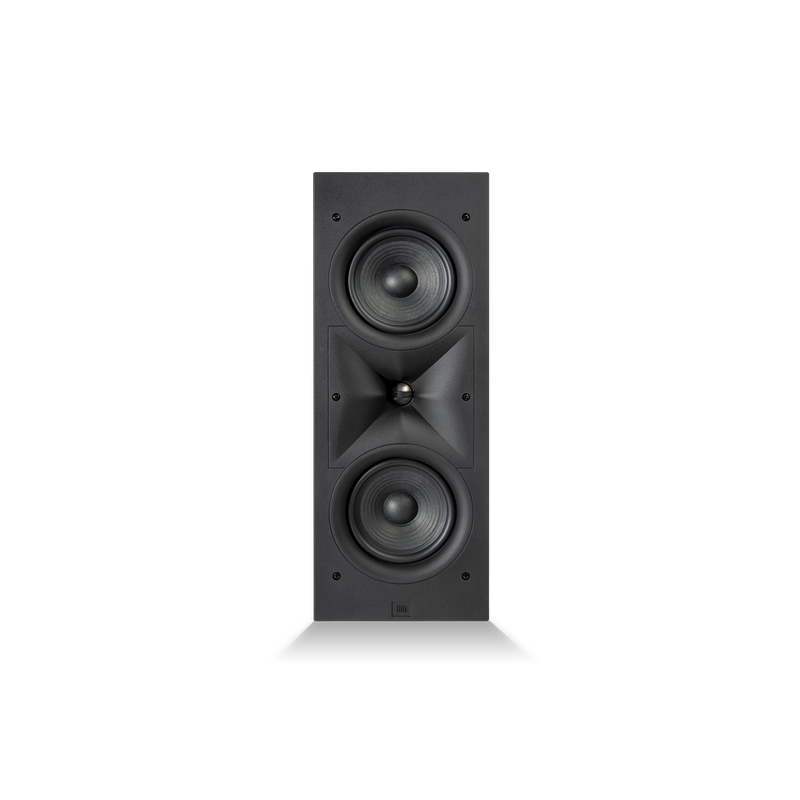

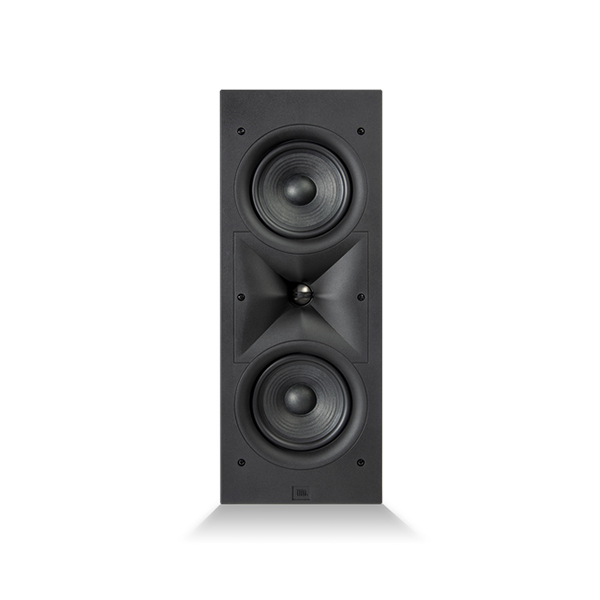

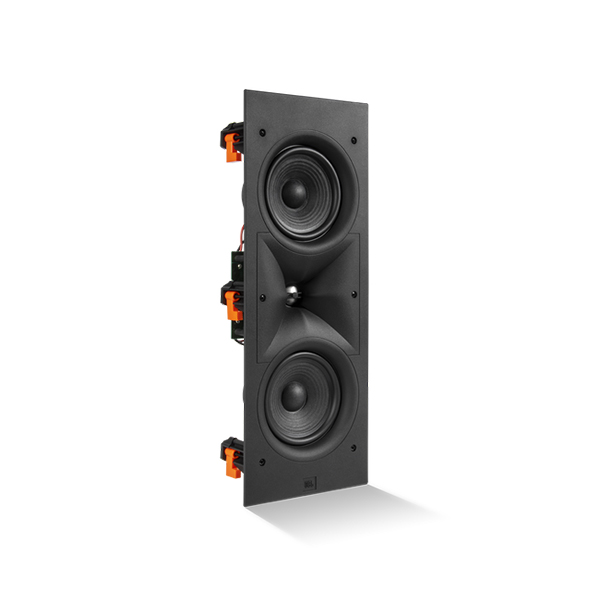

Featuring Dual 5.25″ (130mm) woofers and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater.

A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

Features

• Rigid Baffle design with acoustic smoothing for improved transducer integration
• Aluminum Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
• High-Definition Imaging (HDI™) horns with optimized geometry for smooth dispersion and low distortion
• Harman target curve acoustic performance for smooth accurate sound over a large listening area

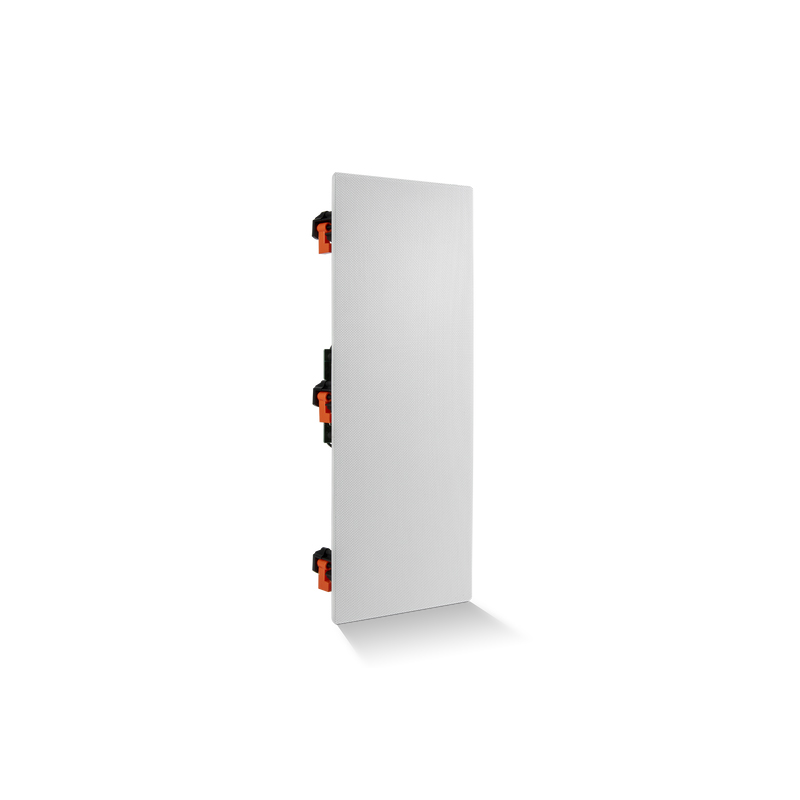

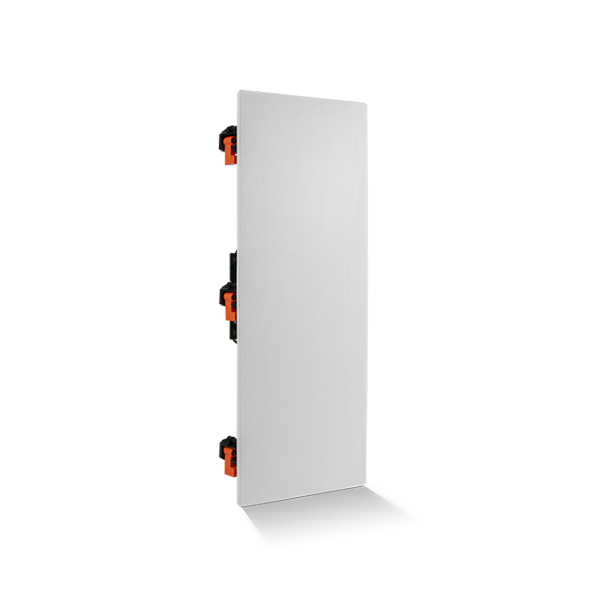

• Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
• XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material

General Specifications

• High Frequency Transducer: 1″ (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide
• Low Frequency Transducer: Dual 5.25″ (130mm) Polycellulose cone woofer
• Recommended Amplifier Power (Full Range): 20-120W RMS
• Frequency Response: 52Hz-25kHz (-6dB on-axis)
• Sensitivity (2.83V@1m): 90dB
• Nominal Impedance: 8ohm
• Crossover Frequency: 2100Hz
• Inputs: Nickel-plated spring-loaded connectors
• Grille Dimensions: H 19.5in (496mm) x W 7.6in (194mm)
• Cutout Dimensions: H 18.1in (460mm) x W 6.4in (162mm)
• Mounting Depth: 3.8in (96mm)
• Product Weight (Kg): 3.5Kg
• Shipping Carton Dimensions: L 21.7in (552mm) x W 9.9in (252mm) x H 4.7in (120mm)
• Shipping Carton Weight: 9.61lbs (4.36Kg)

Sold as a single unit.
