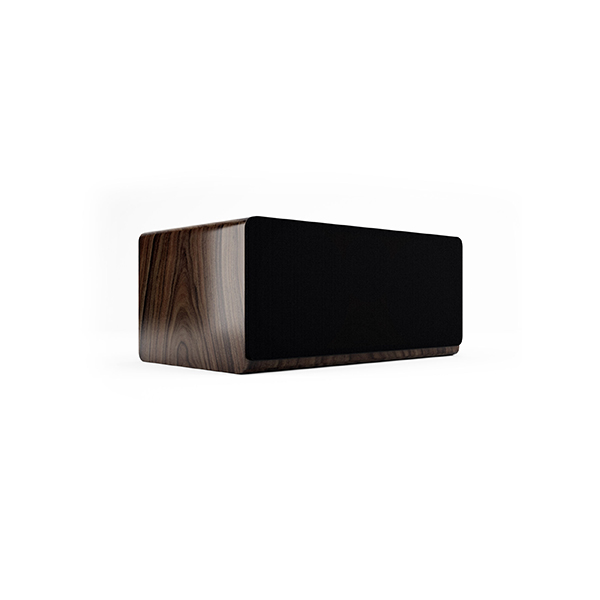

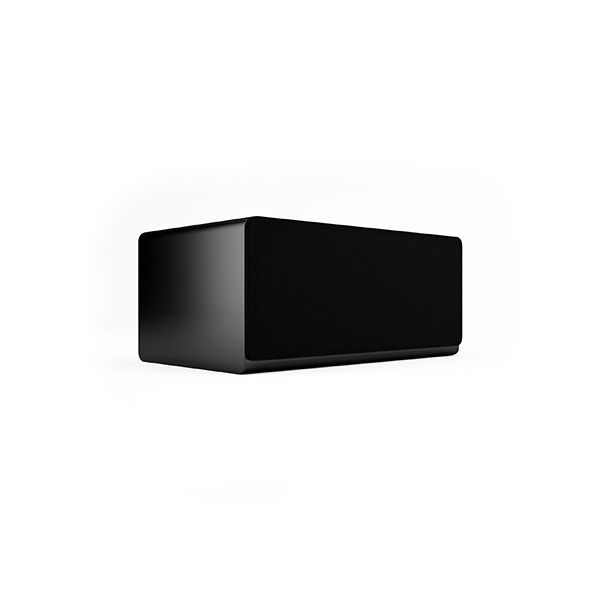

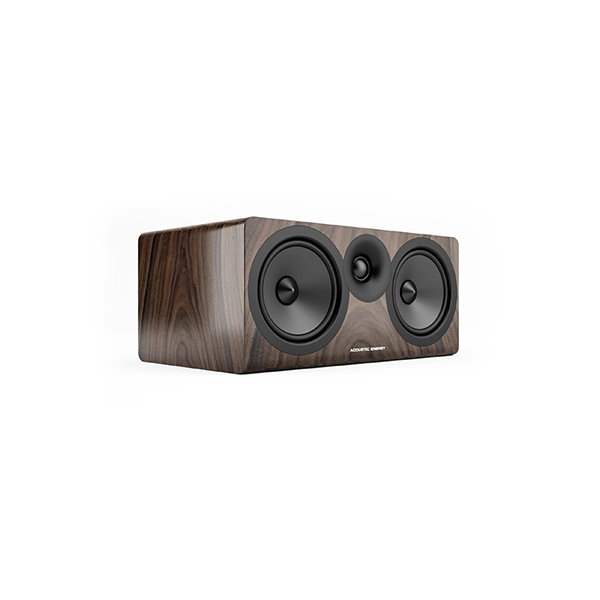

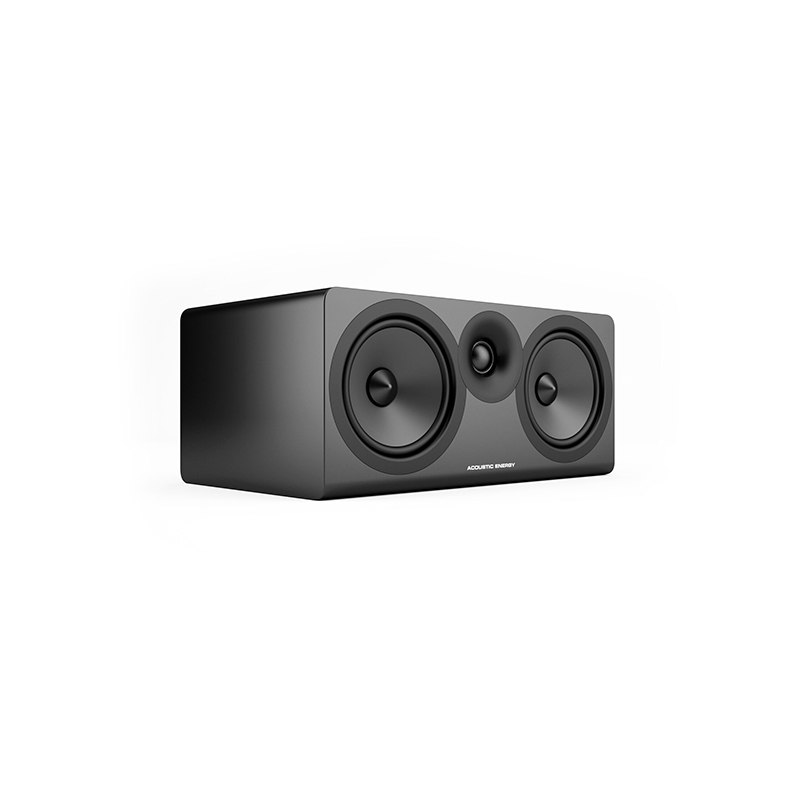

2-way horizontal mount loudspeaker designed for centre channel applications

The AE107² is for home cinema and multi-channel music systems.

The AE107² delivers exceptional articulation and detail throughout the vocal range, augmented by powerful bass performance from the reflex loaded rear slot port. The compact centre speaker can be sited within a cabinet or on a shelf.

Technical Information

Tweeter
Acoustic Energy’s bespoke 25mm soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching. Paired with our Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high-power neodymium motor assembly ensures reliable, distortion-free high-volume playback.

Drivers
The 130mm bass/mid driver used in the 100 Series has been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures. The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.

Cabinet
The 100 Series uses thin, 15mm high density (HDF) enclosures with carefully tuned bracing, reducing harmful resonances whilst retaining body and substance from compact, practical cabinets. The rear slot porting* enhances smooth bass extension with minimal room impact, allowing easy placement. The AE109² and AE120² feature inert mass-loading for additional stability and acoustic damping, all models come supplied with slim magnetic grilles.

*The AE108² is a sealed box with no slot port.

General Specifications

• Drive Unit: 130mm paper cones
• Tweeter: 25mm fabric dome
• Frequency Range: 55Hz – 26kHz
• Sensitivity: 89dB
• Peak SPL: 115dB
• Power Handling: 175w
• Crossover Frequency: 2.2kHz
• Impedance: 6ohms
• Design: 2 way
• Grilles: Slim, cloth magnetic fit
• Dimensions (mm): 180 x 380 x 250 (HxWxD)
• Weight: 4.6kg (each)
• Finishes: Black and Walnut vinyl veneer

Sold as a single unit.
