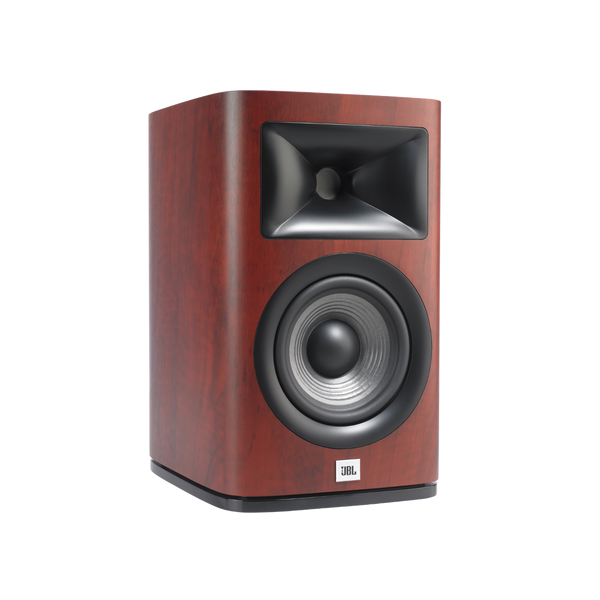

JBL Studio 620

$1,499

* Full NZ warranty
CODE: jbl-studio-620 Brand:
QUANTITY
View Stockists

5.25-inch 2-way Bookshelf Loudspeaker   The JBL Studio 620 is a high-performance bookshelf loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch […]

FacebookTwitterPinterestEmail
Subscribe

5.25-inch 2-way Bookshelf Loudspeaker

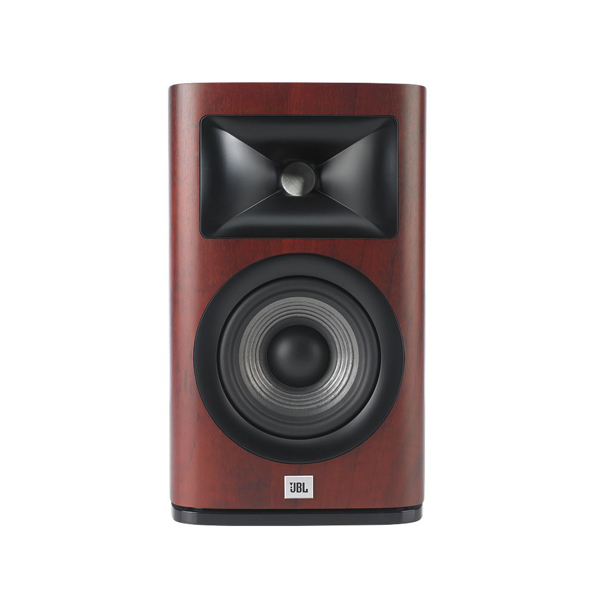

The JBL Studio 620 is a high-performance bookshelf loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer.

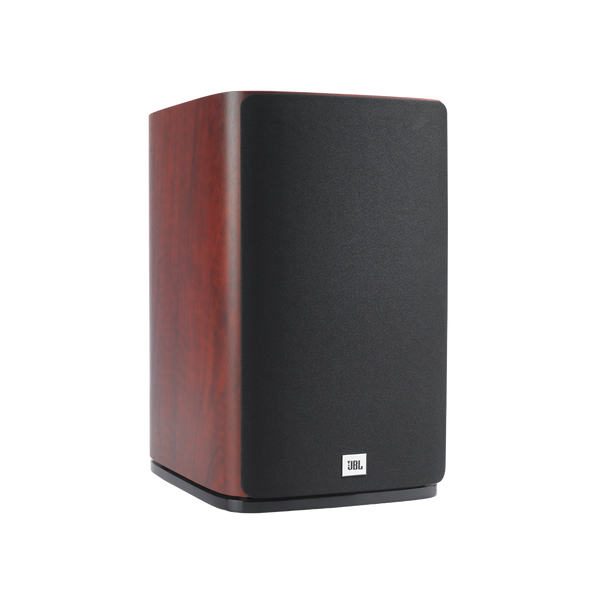

The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.



Features

  • Top-graded PolyPlas cones
  • High-quality sounding compression drivers
  • New, appealing form factor
  • High-Definition Imaging Waveguide with
  • High-Frequency Compression Driver



General Specifications

  • 5.25″ (133mm) PolyPlas Low-Frequency Woofer
  • High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
  • Recommended Amplifier Power: Max 100W
  • Frequency Response: 50Hz – 40kHz
  • Sensitivity: 84dB @ 1M, 2.83V
  • Nominal Impedance: 6 Ohms
  • Crossover Frequencies: 2.3 kHz

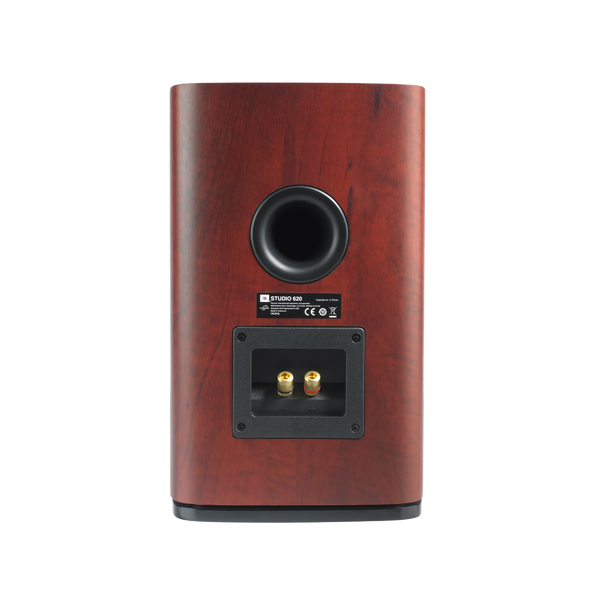

  • Enclosure Type: Bass-Reflex via Rear-Firing Tuned Port
  • Dimensions (W x D x H): 190 x 240 x 312mm



Sold as a Pair.
