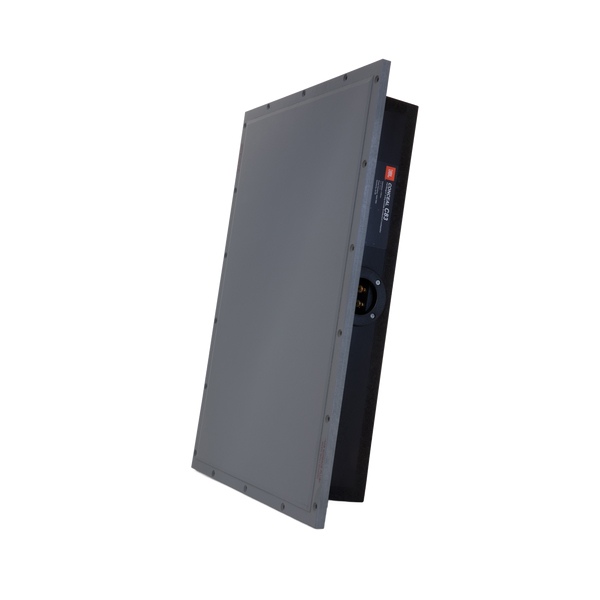

8-inch (200mm) 3-element Invisible Loudspeaker

The JBL Conceal C83 Invisible Loudspeaker is a high-performance 3-element design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin.

The finished loudspeaker panel installs easily and disappears completely into the surrounding walls or ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

Features

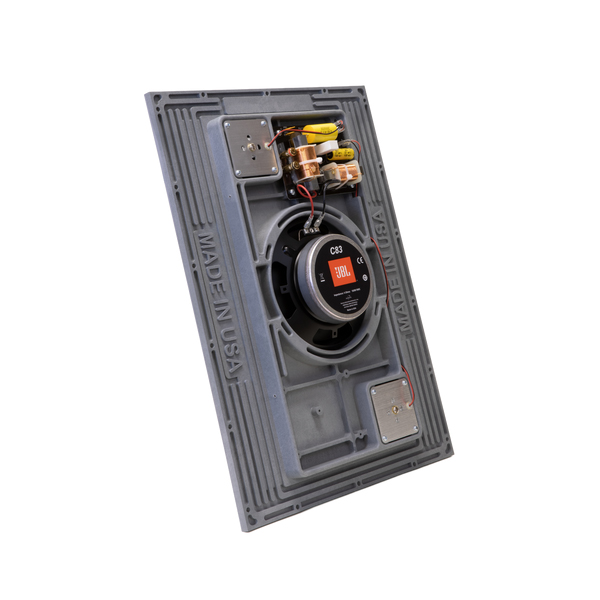

• One-piece design with 8-inch (200mm) woofer and dual MF/HF transducers
• Proprietary FidelityGlass™ acoustic panel and compression molded baffle
• Custom designed transducers with JBL premium acoustic crossover network

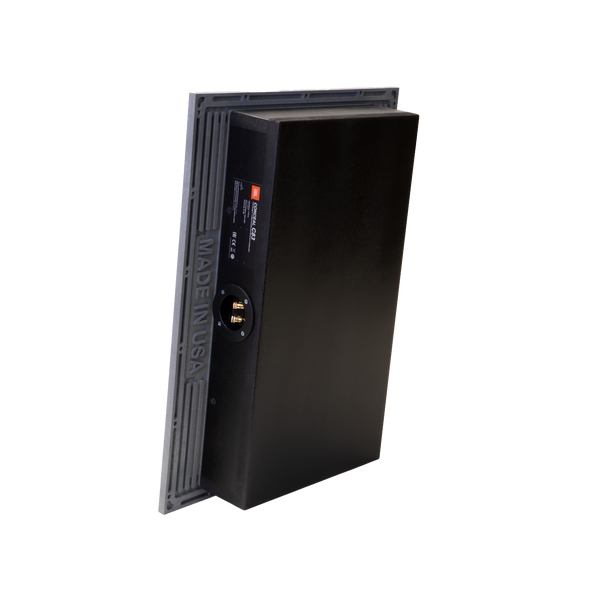

• Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces

General Specifications

• Nominal Impedance: 4 Ohm
• Recommended Amplifier Power: 50 – 160 Watts RMS
• Sensitivity: 84 dB/1W/1m measured in-room
• Frequency Response: 45 Hz – 20 kHz (-6dB) measured in-room
• Driver Technology: Direct-coupled Transducers (HF/MF) and Acoustic Levered Cone Woofer (LF)
• Panel Size: (H x W x D): 22″ H x 15-7/8″ W x 3-7/8″ D (559mm H x 403mm W x 98mm D)

Sold as a single unit.
