8-inch (200mm) 6-element, Dual Panel Invisible Loudspeaker

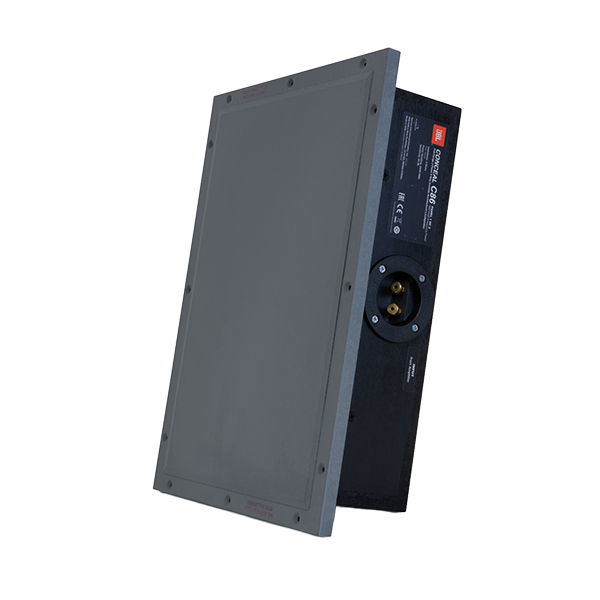

The flagship of the Series, the JBL Conceal C86 Invisible Loudspeaker is a 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel.

Built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin, the finished loudspeaker panels install easily and disappear completely into the surrounding walls, allowing optimal placement virtually anywhere in a room. The JBL C86 is the ultimate solution for high-performance architectural audio.

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.

Features

• Two-piece design with 8-inch (200mm) LF panel and separate five-element HF panel
• Proprietary Fidelity Glass acoustic panel and compression molded baffle

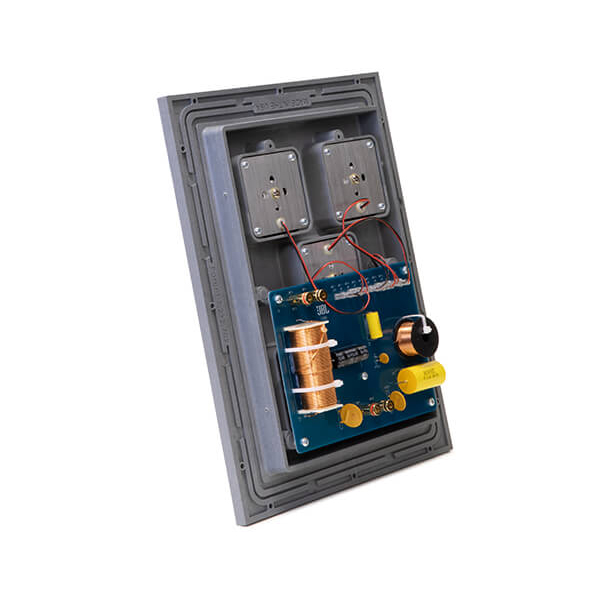

• Custom designed transducers with JBL premium acoustic crossover network

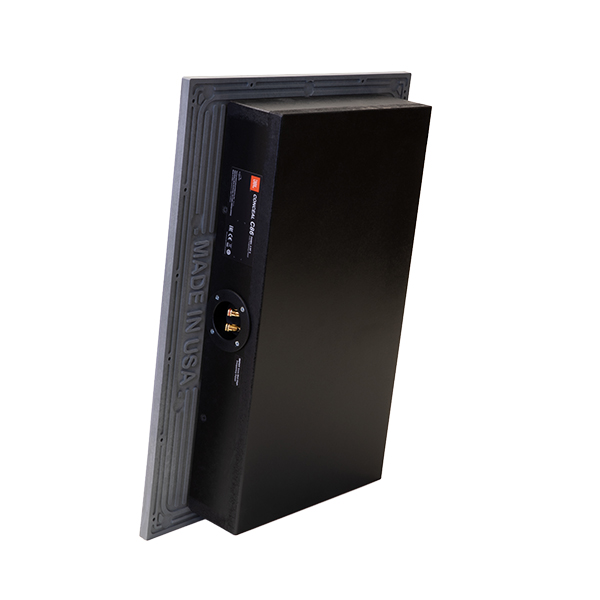

• Integrated back box enclosure
• Installs like a standard drywall patch
• Paintable surface can also be custom finished

General Specifications

• Nominal Impedance: 4 Ohm
• Recommended Amplifier Power: 50 – 200 Watts RMS
• Sensitivity: 84 dB/1W/1m measured in-room
• Frequency Response: 45 Hz – 20 kHz (-6dB) measured in-room
• Driver Technology: Direct-coupled Transducers (HF/MF) and Acoustic Levered Cone Woofer (LF)
• MF/HF Panel: 11-7/8″ H x 15-7/8″ W x 3-7/8″ D: (302mm H x 403mm W x 98mm D)
  LF Panel: 22″ H x 15-7/8″ W x 3-7/8″ D (559mm H x 403mm W x 98mm D)

Sold as a single unit.
